Product Description

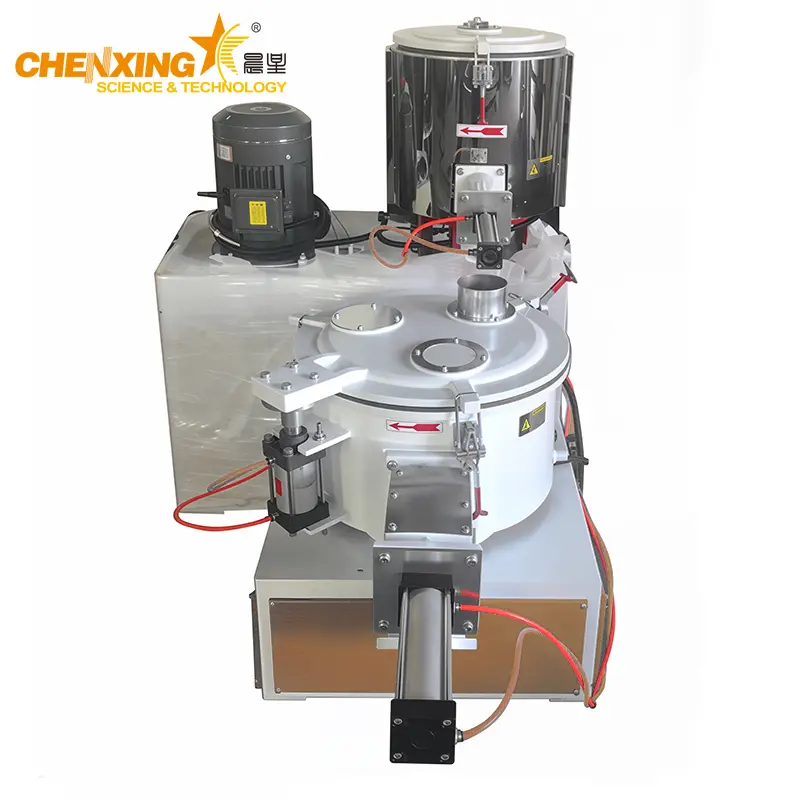

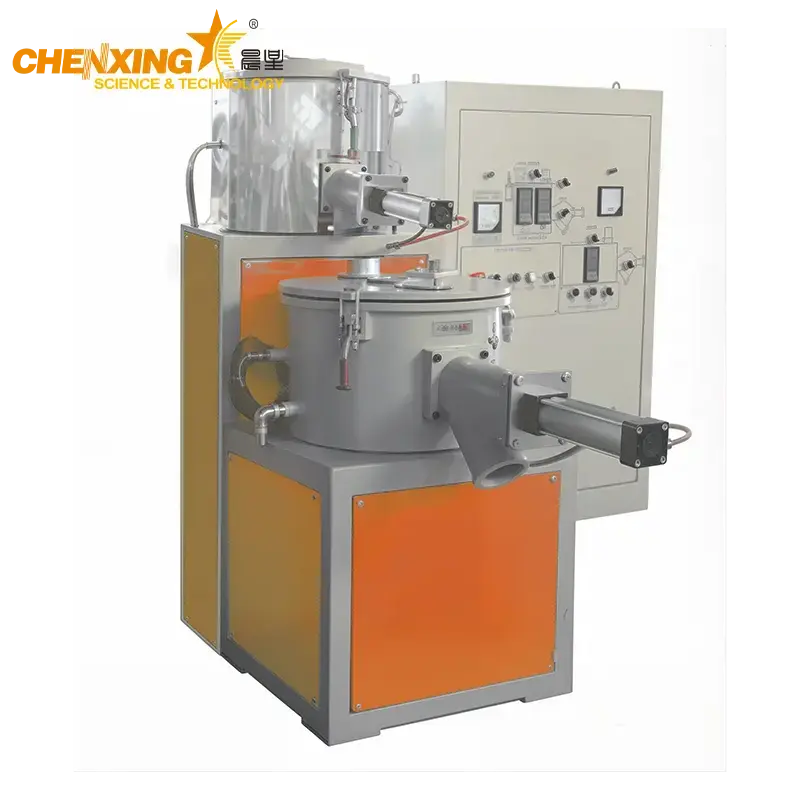

The SRL-Z series experimental hot & cold mixing unit is a compact laboratory-grade solution designed for PVC formulation research, polymer compounding experiments, and small-batch material testing. It integrates high-speed hot mixing and controlled cooling mixing into a single system, enabling precise evaluation of material behavior before industrial-scale production.
This system is widely used in:
Polymer R&D laboratories
PVC formulation development centers
Universities & technical institutes
Material testing and pilot production lines
Small-scale additive and modifier experiments
Built with a dual-stage mixing concept, the system first performs high-speed thermal mixing (hot mixing) to ensure uniform dispersion, followed by controlled cooling mixing to stabilize the material and prevent agglomeration.
The SRL-Z experimental mixer operates in two integrated stages:
PVC powder and additives are fed into the hot mixing chamber
Frictional heat and optional electric heating rapidly raise material temperature
Additives are fully absorbed into PVC resin
High-speed impeller ensures uniform dispersion and plasticization behavior analysis
Material is automatically discharged into the cooling mixer
High-efficiency water circulation cooling system rapidly reduces temperature
Prevents thermal degradation and material sticking
Ensures stable material storage and handling properties
This hot–cold transition simulates industrial PVC compounding conditions on a laboratory scale.
| Parameter | Specification |
|---|---|
| Total Capacity | 10 / 20 L |
| Effective Capacity | 7 / 15 L |
| Main Shaft Speed | 0–1400 / 80 rpm |
| Mixing Method | Friction + Electric Heating |
| Cooling Method | Circulating Water Cooling |
| Motor Power | 2.2 kW / 1.5 kW |
| Water Consumption | 0.5 t/h |
| Air Consumption | 0.4 m³/h |
| Machine Weight | Approx. 600 kg |
Simulates full industrial compounding conditions in a compact laboratory environment.
Combines friction heating and optional electric heating for accurate formulation testing.
Water circulation system ensures rapid cooling and prevents material degradation.
Ensures uniform mixing of PVC resin, stabilizers, fillers, and additives.
Compact footprint suitable for labs, universities, and pilot plants.
Ideal for formula validation, ensuring consistency across experiments.
Optimized motor design reduces energy consumption during small batch processing.
This experimental hot–cold mixer is designed for a wide range of material development tasks:
PVC pipe formulation testing
Rigid and soft PVC compound development
Stabilizer and lubricant performance testing
Additive dispersion studies
Polymer blending experiments
Thermal stability evaluation
Teaching laboratory demonstrations
Material science experiments
Pilot-scale formulation research
Pre-production formulation validation
Material optimization before mass production
Small batch testing of new recipes
In PVC compounding, formulation accuracy directly determines final product quality. This system allows engineers and researchers to:
Reduce trial-and-error costs
Improve formulation precision
Simulate real production conditions
Accelerate product development cycles
Ensure stable scaling from lab to factory
Compared with traditional mixing methods, the SRL-Z system provides higher reproducibility, better dispersion quality, and faster cooling efficiency.
Industrial-grade stainless steel mixing chamber
Reinforced rotor design for long-term operation
Precision-balanced shaft system
Designed for continuous laboratory use
Manufactured under strict quality inspection processes
With over 20 years of experience in polymer processing machinery manufacturing, the system reflects real industrial engineering standards adapted for laboratory environments.
It is suitable for PVC powder, stabilizers, fillers, lubricants, and various polymer additives.
Hot mixing ensures dispersion and absorption of additives, while cold mixing stabilizes the material and prevents agglomeration.
Yes, it is designed to replicate industrial PVC compounding conditions on a laboratory scale.
Yes, it uses a circulating water cooling system for fast and stable temperature reduction.
PVC processing plants, polymer R&D centers, universities, and material testing laboratories.
Yes, it is ideal for pilot-scale production and experimental formulation development.
Heating can be controlled through friction and optional electric heating depending on process requirements.
No special foundation is required; it is suitable for standard laboratory environments.
