Product Description
The SYH Three-Dimensional Motion Mixer is an advanced blending solution specifically designed for achieving exceptionally uniform mixing of powders, granules, and free-flowing bulk materials. Unlike conventional ribbon mixers, paddle mixers, or V-type blenders, the SYH mixer generates simultaneous three-dimensional movement, ensuring materials continuously flow, diffuse, tumble, and exchange positions throughout the mixing process.
This innovative motion eliminates material segregation caused by differences in particle size, density, or shape while preventing dead zones that often occur in traditional mixing equipment.
As a result, the SYH Series is widely used in:
PVC compound production
Chemical manufacturing
Pharmaceutical processing
Food ingredient blending
Battery material preparation
Metallurgical powder processing
New energy materials
Research laboratories and pilot plants
For manufacturers seeking consistent product quality, reduced batch variation, and higher production efficiency, the SYH Three-Dimensional Motion Mixer offers an ideal solution.
Many conventional mixers rely primarily on rotational motion.
This creates several common problems:
Material segregation
Dead mixing zones
Inconsistent batch quality
Long mixing cycles
Reduced loading efficiency
Poor handling of different particle densities
These limitations become even more apparent when processing:
PVC dry blends
Additive premixes
Pharmaceutical powders
Food ingredients
Battery powders
Fine chemical compounds
The SYH mixer was developed specifically to overcome these challenges.
A Three-Dimensional Motion Mixer is a high-efficiency blending machine that combines:
The mixing vessel rotates around its own axis.
The vessel simultaneously moves in multiple directions.
Materials continuously overturn and redistribute inside the chamber.
Through these combined movements, materials experience:
Convection mixing
Diffusion mixing
Shear mixing
Turbulent mixing
This creates an extremely homogeneous mixture throughout the entire batch.

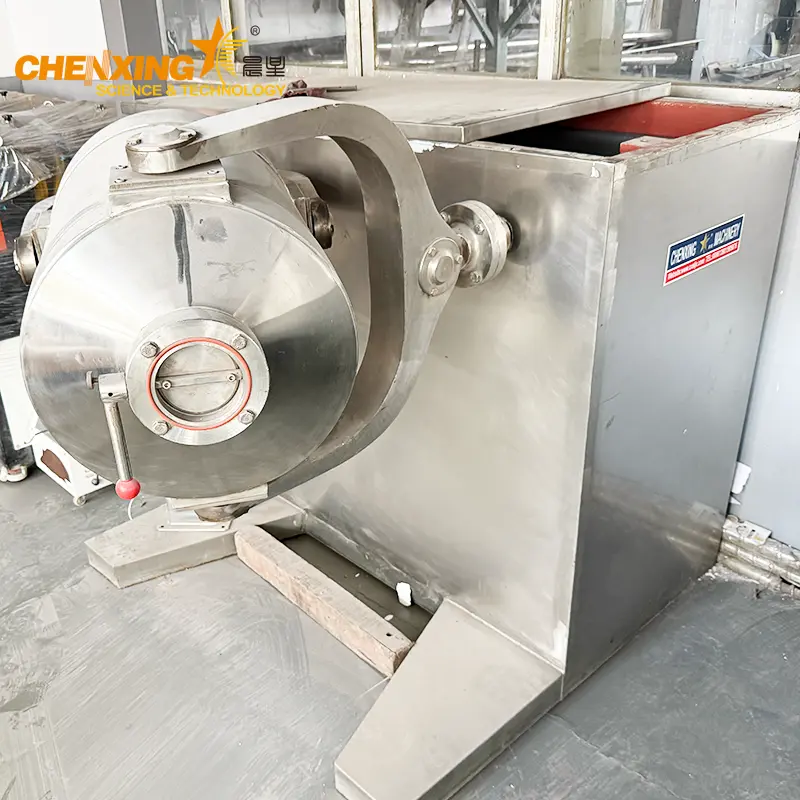

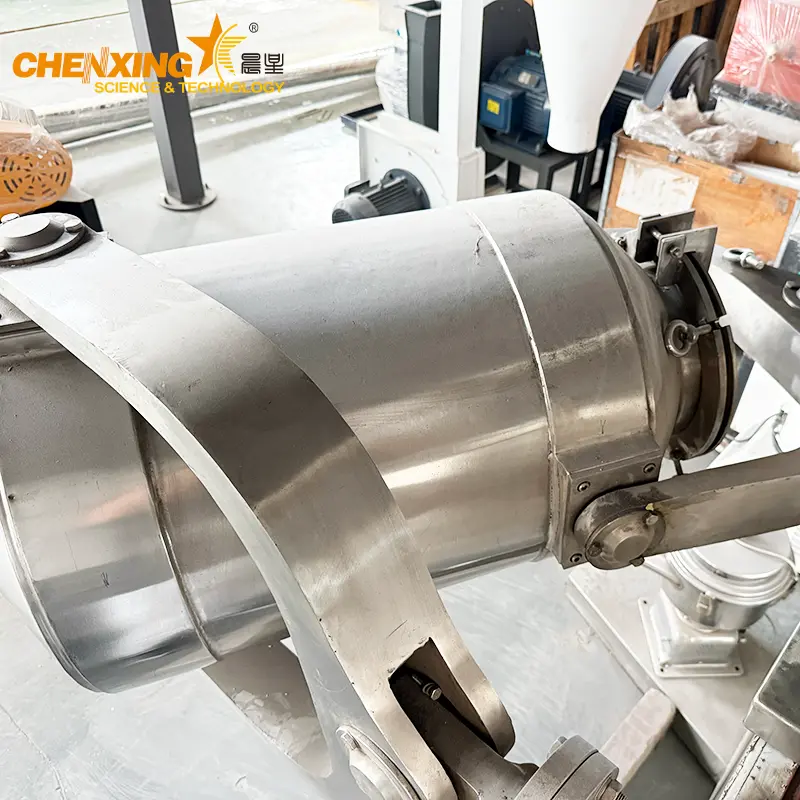

The SYH Three-Dimensional Motion Mixer operates using a unique spatial movement mechanism.
During operation:
The mixing container rotates.
The container simultaneously moves along multiple axes.
Materials continuously flow, tumble, and exchange positions.
Centrifugal force effects are minimized.
Particle segregation is eliminated.
Uniform mixing is achieved rapidly.
Unlike fixed-axis mixers, the entire material mass participates in mixing.
This ensures:
No dead corners
No material accumulation
No stratification
No localized over-mixing
The result is highly consistent product quality from batch to batch.
The mixer achieves blending uniformity exceeding:
This makes it suitable for formulations requiring precise ingredient distribution.
Examples include:
PVC stabilizers
Color masterbatch additives
Pharmaceutical ingredients
Nutritional powders
Battery material formulations
The unique three-dimensional motion prevents:
Density separation
Particle stratification
Additive concentration variation
This is particularly valuable when blending materials with significantly different physical properties.
Compared with conventional mixers, the effective loading volume can reach:
Benefits include:
Higher productivity
Larger batch capacity
Improved equipment utilization
Continuous multi-directional movement accelerates material flow and diffusion.
Advantages:
Faster production cycles
Lower energy consumption
Increased throughput

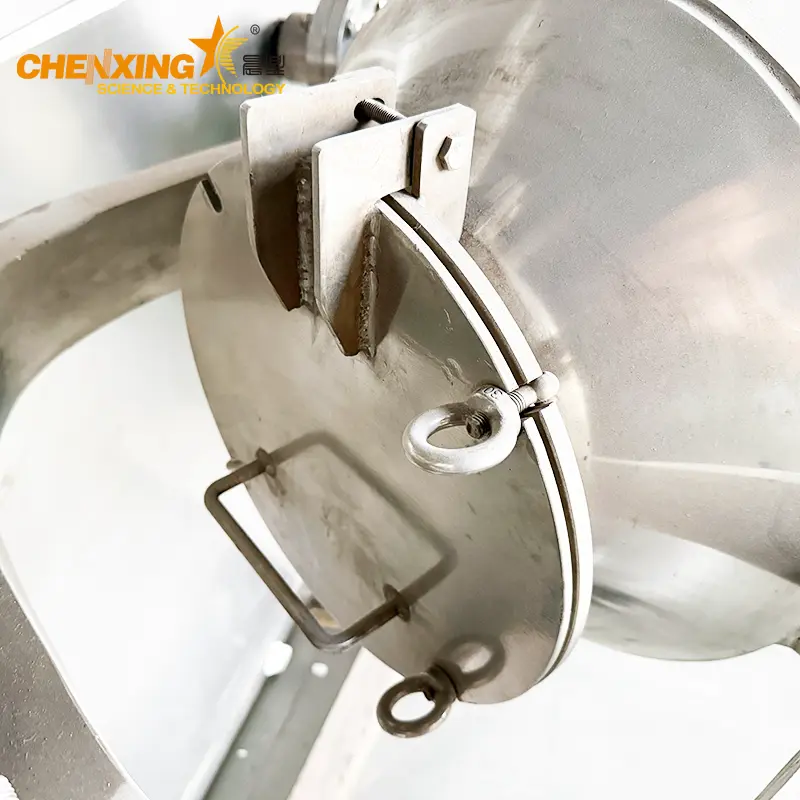

The mixing chamber and transmission system can be separated.
This enables:
Easier cleaning
Better sanitation
Reduced contamination risks
Especially important for:
Pharmaceutical production
Food processing
Nutraceutical manufacturing
The machine operates with a relatively low overall height.
Benefits include:
Simplified installation
Reduced building modifications
Lower infrastructure investment

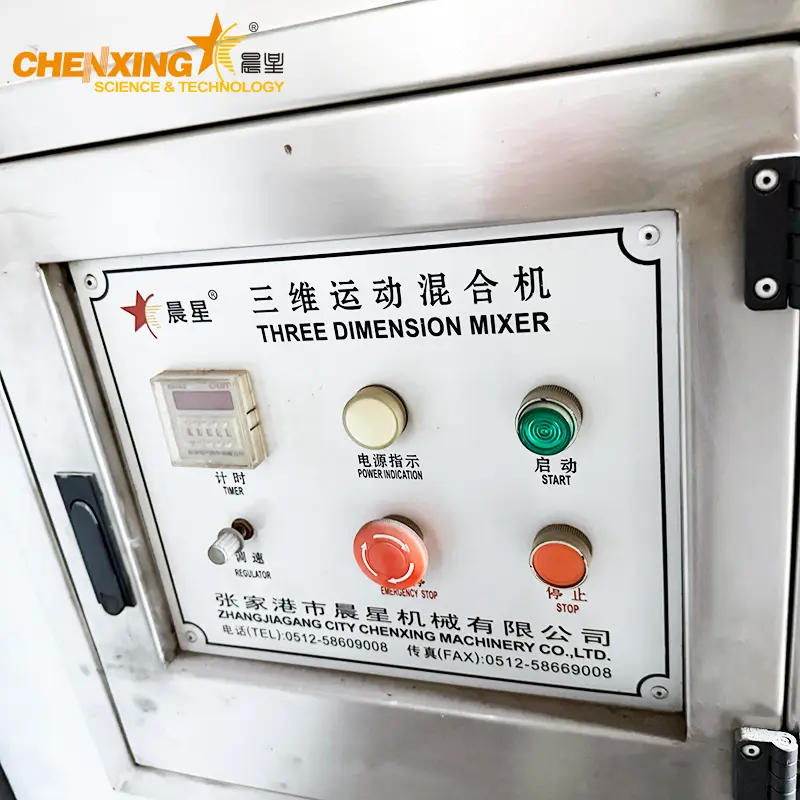

Stepless speed adjustment allows operators to optimize mixing conditions for different materials.
Additional benefits:
Convenient charging
Fast discharge
Reduced labor requirements
The balanced mechanical structure minimizes vibration and noise while extending equipment lifespan.
PVC resin
Calcium carbonate
Stabilizers
Processing aids
Lubricants
Pigments
Fine chemicals
Additives
Detergent powders
Catalysts
Inorganic compounds
Active pharmaceutical ingredients
Excipients
Granules
Dry powders
Flour blends
Seasonings
Nutritional powders
Beverage ingredients
Dairy powders
Cathode materials
Anode materials
Conductive additives
Electrolyte precursors
Metal powders
Alloy powders
Ceramic powders
| Model | Mixing Volume (L) | Max Loading Coefficient (%) | Max Material Load (kg) | Power (kW) |
|---|---|---|---|---|
| SYH-2 | 2 | 80 | 0.8 | 0.18 |
| SYH-17 | 17 | 80 | 6.8 | 0.75 |
| SYH-30 | 30 | 80 | 12 | 0.75 |
| SYH-60 | 60 | 80 | 24 | 1.1 |
| SYH-100 | 100 | 80 | 40 | 1.5 |
| SYH-200 | 200 | 80 | 80 | 2.2 |
| SYH-400 | 400 | 80 | 160 | 4 |
| SYH-500 | 500 | 80 | 200 | 5.5 |
| SYH-600 | 600 | 80 | 240 | 5.5 |
| SYH-800 | 800 | 80 | 320 | 7.5 |
| SYH-1000 | 1000 | 80 | 400 | 7.5 |
| SYH-1500 | 1500 | 80 | 600 | 11 |
| SYH-2000 | 2000 | 80 | 800 | 15 |
Available capacities from laboratory scale to full industrial production.
For PVC pipe, profile, cable, conduit, and sheet manufacturers, uniform dry blending directly affects final product quality.
The SYH mixer helps achieve:
Uniform distribution of:
PVC resin
CaCO₃
Stabilizers
Lubricants
Processing aids
Results include:
Better melt homogeneity
Improved surface finish
Consistent mechanical properties
Accurate blending minimizes batch rejection rates.
According to application requirements, the machine can be manufactured using:
Ideal for:
Chemicals
PVC additives
General industrial materials
Recommended for:
Pharmaceuticals
Food processing
Corrosive materials
Suitable for GMP and hygienic applications.
To meet different production requirements, optional configurations include:
PLC control system
Touchscreen HMI
Frequency inverter
Automatic loading system
Vacuum conveying integration
Dust collection system
CIP cleaning system
Explosion-proof design
Jacketed mixing chamber
Customized discharge valves
The SYH Series Three-Dimensional Motion Mixer is widely used by:
With decades of experience in powder handling, material conveying, weighing, mixing, and compounding systems, Chenxing Machinery provides more than just equipment.
We offer:
Our engineers understand how powders behave during:
Conveying
Storage
Feeding
Mixing
Compounding
Every customer's material characteristics are different.
We customize:
Capacity
Material construction
Automation level
Discharge system
Control configuration
Our equipment serves customers across:
North America
Europe
Southeast Asia
Middle East
South America
Africa
We can integrate the SYH mixer into complete production lines including:
Vacuum conveying systems
Storage silos
Automatic weighing systems
Feeding stations
High-speed mixers
Extrusion systems
The mixer can achieve mixing uniformity above 99% under properly configured operating conditions.
The machine is suitable for powders, granules, additives, chemical materials, food ingredients, pharmaceutical powders, battery materials, and PVC compounds.
No. The three-dimensional motion eliminates dead corners and ensures full material participation in the mixing process.
Yes. One of the primary advantages of the SYH mixer is its ability to prevent segregation of materials with different particle sizes and densities.
Yes. SUS316L construction and GMP-compliant configurations are available for pharmaceutical production environments.
The correct model depends on:
Batch size
Material density
Production requirements
Mixing frequency
Our engineering team can recommend the optimal configuration.
Absolutely. The SYH mixer is commonly integrated with:
Automatic weighing systems
Vacuum conveying systems
Powder storage silos
Centralized feeding systems
for fully automated production.
Yes. Explosion-proof electrical components and ATEX-compatible designs can be provided for combustible powder applications.
Whether you manufacture PVC compounds, chemical additives, pharmaceutical formulations, battery materials, or food ingredients, Chenxing Machinery can design a customized Three-Dimensional Motion Mixing System tailored to your production process.
Contact our engineering team today to receive:
Free technical consultation
Equipment selection guidance
Process flow recommendations
Detailed quotation
Layout design support
Increase mixing uniformity, improve product quality, and automate your powder processing workflow with the SYH Three-Dimensional Motion Mixer from Chenxing Machinery.
