In plastic recycling and compounding industries, particle size consistency directly affects downstream processing quality. Whether the goal is rotational molding, masterbatch production, or plastic recycling reuse, converting plastic granules into stable, fine powder is not optional—it is a technical necessity. This is where a plastic pulverizer machine, especially the SMF Series Plastic Pulverizer, plays a critical role.
This article explains how the SMF Series Plastic Pulverizer works, which materials it handles, and why it has become a reliable solution across recycling, pelletizing, and powder-based plastic applications.
Unlike shredders or crushers that reduce plastics into flakes or granules, a plastic pulverizer machine is designed to achieve controlled micron-level powder output. This powder form allows plastics to be:
Reused in rotational molding
Blended into composite materials
Used for masterbatch and color compounding
Fed into specialized extrusion or coating systems
In practice, manufacturers using powder-based feedstock experience better dispersion, stable melt behavior, and improved product uniformity.

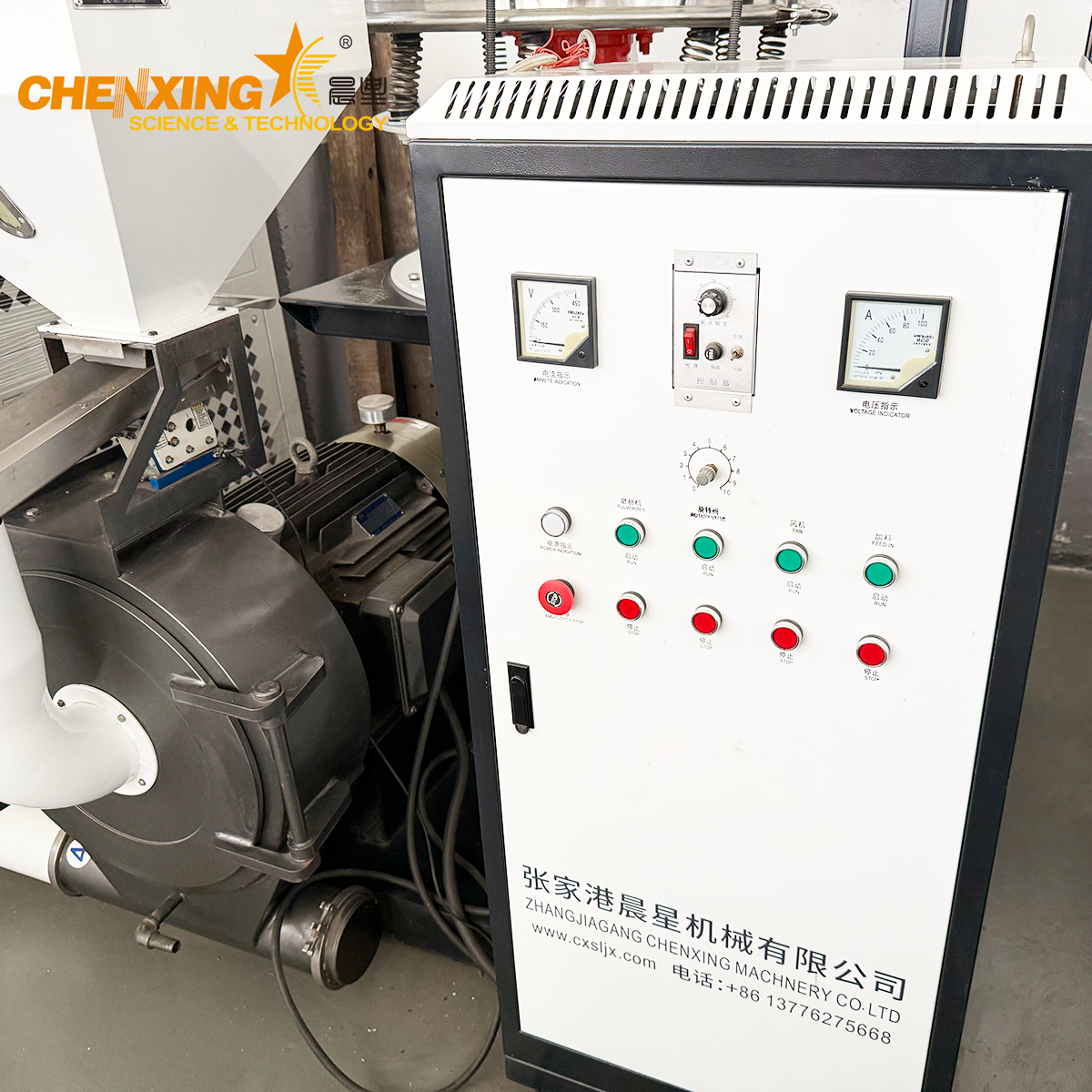

The SMF Series Plastic Pulverizer operates on a mechanical principle that combines high-speed impact, shear force, and controlled grinding.
At its core, the machine consists of:
A high-speed rotating main shaft
A precision-designed moving blade (rotor)
Fixed stationary blades mounted on the machine housing
An adjustable blade clearance system
An integrated water cooling structure
When powered on, the main shaft drives the rotor at high speed, creating a strong mechanical interaction zone between moving and fixed blades.
Plastic materials are pre-crushed into granules of approximately 6–8 mm before entering the pulverizer. This ensures stable feeding and uniform grinding efficiency.
As the material enters the grinding chamber, it is repeatedly:
Impacted by the high-speed rotating blades
Cut by sharp blade edges
Sheared between moving and stationary knives
This continuous mechanical action rapidly reduces the particle size.
Beyond cutting, controlled friction between blades further refines the material into powder form. The design ensures consistent grinding without excessive deformation.
One of the most important features of the SMF Series Plastic Pulverizer is precision clearance adjustment. By adjusting the gap between moving and fixed blades using feeler gauges, operators can control final powder fineness, reaching micron-level output when required.
Grinding generates heat. To prevent plastic softening, degradation, or discoloration, the SMF pulverizer is equipped with a water cooling system that stabilizes chamber temperature and preserves material quality.
The SMF Series is engineered to handle a wide range of medium-hard, brittle, and high-impact plastics, including:
PE (Polyethylene)
PP (Polypropylene)
PVC (Polyvinyl Chloride)
PC (Polycarbonate)
EVA (Ethylene-Vinyl Acetate)
PS (Polystyrene)
PES and other engineering plastics
This versatility makes the SMF Series Plastic Pulverizer suitable for both post-industrial and post-consumer plastic recycling lines.
Pulverized plastic powder can be reintroduced into recycling systems or blended with virgin material to reduce raw material costs.
Fine powder ensures uniform pigment dispersion, improving color consistency and reducing processing defects.
Rotomolding requires stable powder flowability and particle size distribution—applications where SMF Series pulverizers perform reliably.
Plastic powder is widely used in composite boards, coatings, and modified plastic formulations.
Optimized blade geometry and airflow design reduce unnecessary resistance, allowing high output with relatively low power consumption.

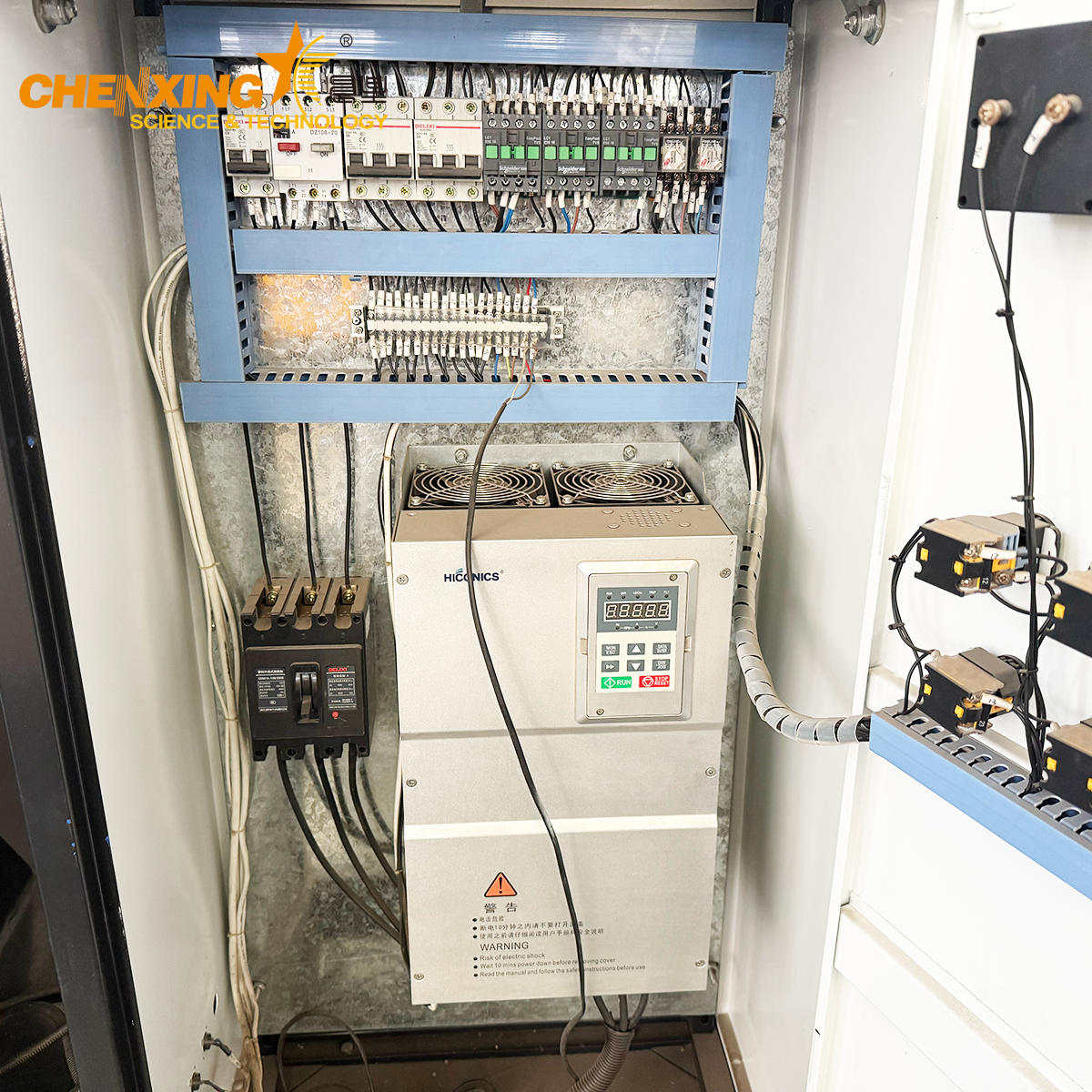

With optional frequency inverter control, the pulverizer offers:
Smooth startup
Balanced load distribution
Precise speed and output adjustment
Motor protection during long-term operation
The machine uses high-quality alloy steel blades designed for repeated grinding and re-sharpening, extending service life and reducing maintenance costs.
Simple installation, intuitive adjustment, and accessible maintenance points make the SMF Series suitable for both large-scale plants and medium-sized recycling operations.
When integrated into a complete plastic recycling line, the SMF Series Plastic Pulverizer enhances:
Material value through finer output
Processing flexibility across applications
End-product consistency
Overall recycling efficiency
For companies aiming to build closed-loop recycling systems, pulverization is often the missing link between crushing and pelletizing or compounding stages.
Particle size can be adjusted from coarse powder to fine micron-level output by modifying blade clearance and operating parameters.
For heat-sensitive plastics such as PVC or EVA, water cooling is strongly recommended to prevent thermal degradation and maintain powder quality.
Yes. The SMF Series Plastic Pulverizer can be connected with crushers, conveyors, cyclone separators, and automated feeding systems.
With proper operation and material preparation, alloy steel blades can be re-sharpened multiple times before replacement is required.
Selecting a plastic pulverizer machine is not just about grinding capacity. It involves understanding material behavior, heat control, blade dynamics, and long-term operational stability.
At www.chenxingmachinery.com, we design and supply SMF Series Plastic Pulverizers as part of complete plastic recycling and powder processing solutions—helping customers reduce waste, improve material reuse, and build scalable recycling systems.
Looking to improve your plastic powder production or upgrade your recycling line?
Explore our SMF Series Plastic Pulverizer and complete recycling solutions at www.chenxingmachinery.com, or contact our technical team for a customized configuration based on your material and capacity requirements.
