Metallic Bonding Machine — Industrial Metal Pigment Bonding System for Powder Coatings

Overview

The Metallic Bonding Machine from Chenxing Machinery is a specialized thermal-mechanical bonding system engineered for the powder coating industry. It physically bonds metal pigments — aluminum powder, bronze powder, pearlescent pigments — onto the surface of powder coating base particles through precisely controlled friction-generated heat and jacketed hot water heating, achieving uniform, inseparable metallic effects. Spanning five production-proven models from 1.5 kg lab-scale to 200 kg full-production systems, the CXB series covers every throughput requirement from R&D formulation to high-volume manufacturing.

The bonding process eliminates the fundamental problem of metal pigment separation during electrostatic spray application. In unbonded dry blends, metal flakes and base powder particles carry different electrostatic charges, causing segregation during spraying and rendering overspray powder unrecyclable. A properly bonded metallic powder, in contrast, behaves as a single-component system — every particle carries the same charge-to-mass ratio, ensuring uniform deposition, 100% overspray recyclability, and consistent metallic appearance across the entire coated surface. This makes the CXB bonding machine indispensable for powder coating production lines serving architectural aluminum profiles, automotive components, home appliances, furniture, and the growing "liquid-to-powder" conversion market.

Technical Parameters

All models support a wide range of metal pigments suitable for powder coating compounding and are compatible with upstream pulverizers and downstream sieving systems.

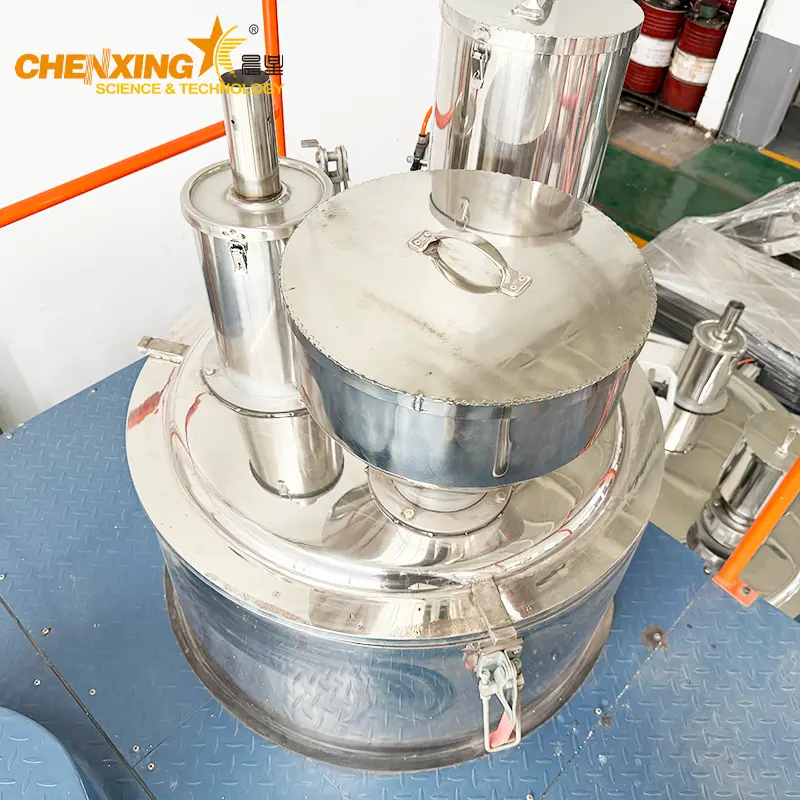

System Configuration — In-Depth Component Breakdown

Core Features

1. Precision Bonding Temperature Control — The combination of jacketed hot water heating (±1°C) and friction-generated heat from VFD-controlled paddle speed (5–100% RPM range) provides dual-mode temperature control. This allows operators to keep the powder bed temperature 3–8°C below the glass transition temperature (Tg) of the base powder, ensuring metal pigments bond firmly to softened particle surfaces without causing particle agglomeration or gelation. The PT100 product probe provides real-time feedback at 10 Hz, enabling millisecond-level PID response. This level of precision is critical when bonding temperature-sensitive polyester or epoxy-polyester hybrid systems commonly used in architectural powder coatings.


2. Triple-Point Nitrogen Protection — Nitrogen is injected at three critical locations: the hot mixing chamber headspace, the mechanical seal purge chamber, and the discharge transfer chute. Combined with a zirconia oxygen analyzer that continuously monitors O₂ levels and interlock logic that prevents the bonding cycle from starting until O₂ < 3%, this system provides comprehensive oxidation prevention for aluminum and bronze pigments. The result: bonded metallic powders that retain > 95% of their original pigment brilliance even after 12 months of storage. This is a decisive advantage over competing machines that only flush the chamber headspace or omit nitrogen protection entirely.


3. Bonding Auto-Detection for Batch Consistency — The proprietary auto-detection algorithm eliminates the largest source of quality variation in metallic bonding: operator judgment of endpoint. By analyzing the real-time rate-of-change of the powder bed temperature curve, the system identifies the characteristic inflection point that marks completed pigment-to-particle bonding, then automatically initiates the discharge sequence. Batch-to-batch temperature variation is held within ±1°C, ensuring that the bonded metallic powder from batch 1 and batch 100 produce indistinguishable coating results. This is essential for automotive powder coating applications where color and effect consistency across thousands of parts is non-negotiable.


4. Rapid Cold Mixing Without Pigment Debonding — The cold mixing chamber employs zoned water-jacket cooling with staged activation — only the zones in direct contact with hot product are activated, preventing thermal shock. Combined with a low-shear wide-blade paddle (3–5 m/s tip speed, versus 15–22 m/s in the hot mixer), the system cools a full batch from 55–65°C to below 35°C within 5–8 minutes while preserving > 99% of the bonded pigment attachment. Over-aggressive cooling — a common problem in poorly designed cold mixers — can strip pigments from particle surfaces and create free-floating metal flakes that cause segregation during spraying. The CXB cooling profile is specifically engineered to avoid this failure mode.


5. One-Button Start with 400-Recipe Memory — The PLC stores up to 400 complete bonding recipes, each containing: target bonding temperature, paddle RPM profile, hot water setpoint, nitrogen flow rate, bonding hold time (or auto-detection mode), and cooling parameters. Once a recipe is selected, a single button-press initiates the full automated sequence: nitrogen purge → hot water heating → paddle start → monitored bonding → auto-detection trigger → discharge → cold mixing → cycle complete. Operators require minimal training; the machine enforces process discipline automatically. Recipes are created and tuned during commissioning with remote support from Chenxing's application engineers.


6. Full-Model Coverage from Lab to Production — The CXB series spans five models designed for seamless scale-up. The CXB-1.5 and CXB-3 lab units use identical paddle geometry, chamber aspect ratio, and temperature control architecture as the production models, ensuring that bonding parameters developed on lab machines transfer directly to production-scale CXB-100 and CXB-200 units with minimal adjustment. This eliminates the costly and time-consuming re-formulation that occurs when lab and production bonding equipment have fundamentally different mixing dynamics. For toll bonding operations and custom powder manufacturers, the CXB-30 offers an ideal mid-volume solution.

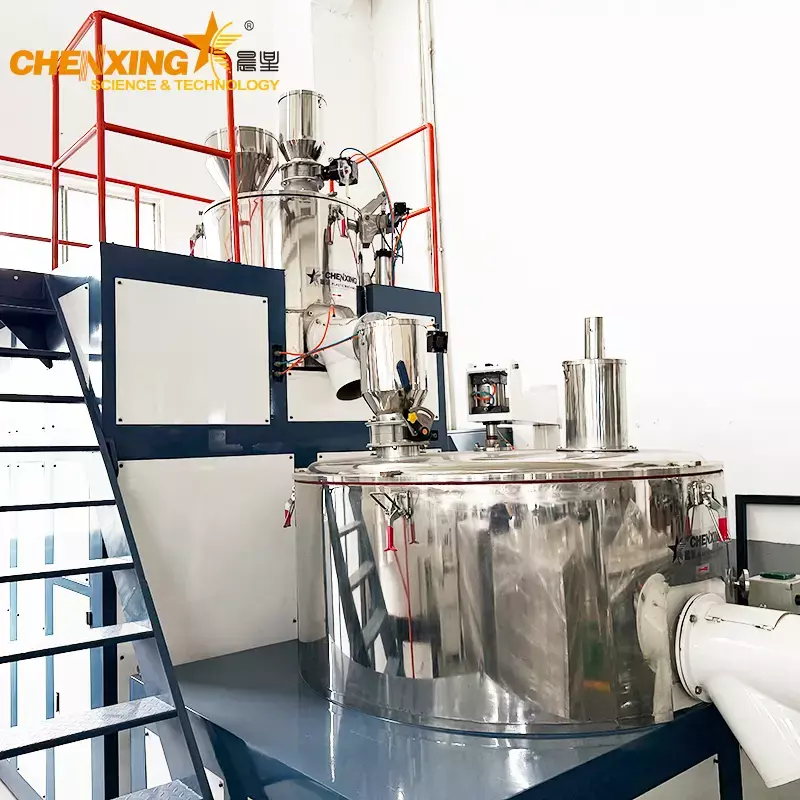

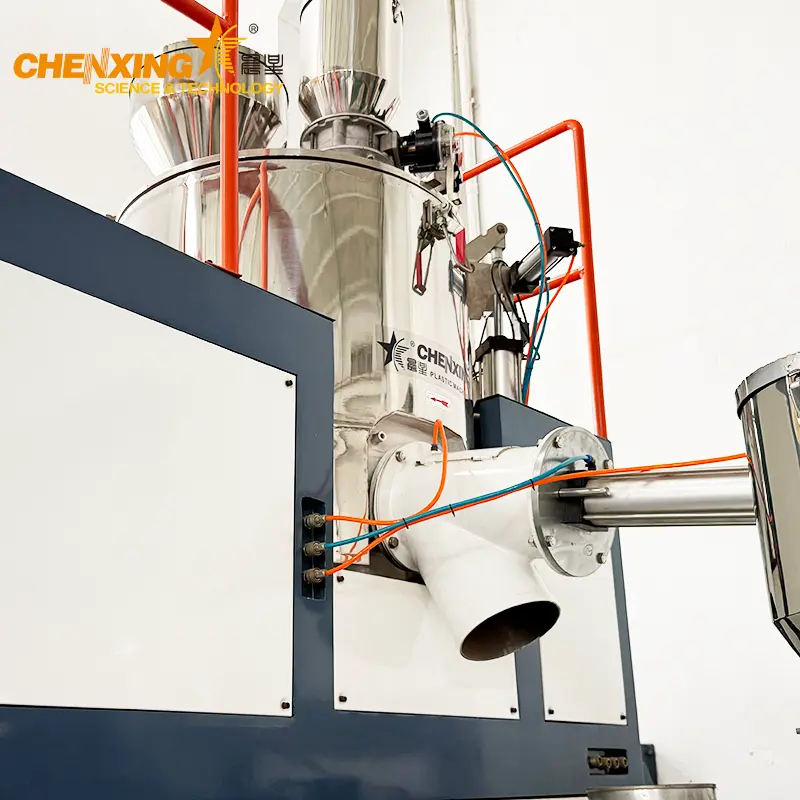

7. Compact Footprint, Gravity-Fed Architecture — The vertical gravity-fed design — hot mixer elevated above the cold mixer — eliminates all intermediate conveying equipment (screw feeders, pneumatic transfer lines, rotary valves) between the bonding and cooling stages. Discharge from hot to cold takes under 3 seconds via full-bore knife gate valve, with zero residual product left in the transfer path. This not only reduces equipment cost and floor space (the CXB-100 requires only 40 m², versus 55–65 m² for equivalent horizontal-layout systems) but also eliminates the cleaning and cross-contamination issues associated with transfer conveyors. The entire product path is accessible and cleanable within 30–40 minutes for color or effect changeover.


8. Remote Maintenance and Diagnostics — Every CXB-100 and CXB-200 includes a secured VPN-based remote maintenance portal. Chenxing engineers can remotely access the PLC, view real-time operating data, diagnose alarms, and upload software updates without waiting for an on-site service visit. Historical data logging (temperature curves, motor loads, alarm events) enables predictive maintenance — bearing wear, seal degradation, and VFD capacitor aging can be identified before they cause unplanned downtime. For customers in regions without local powder coating equipment service providers, this remote capability dramatically reduces technical risk and total cost of ownership. Combined with our spare parts program, typical mean-time-to-repair is under 4 hours.

Production Process

The CXB bonding cycle is a precisely orchestrated batch process. Each step is monitored and controlled by the PLC:

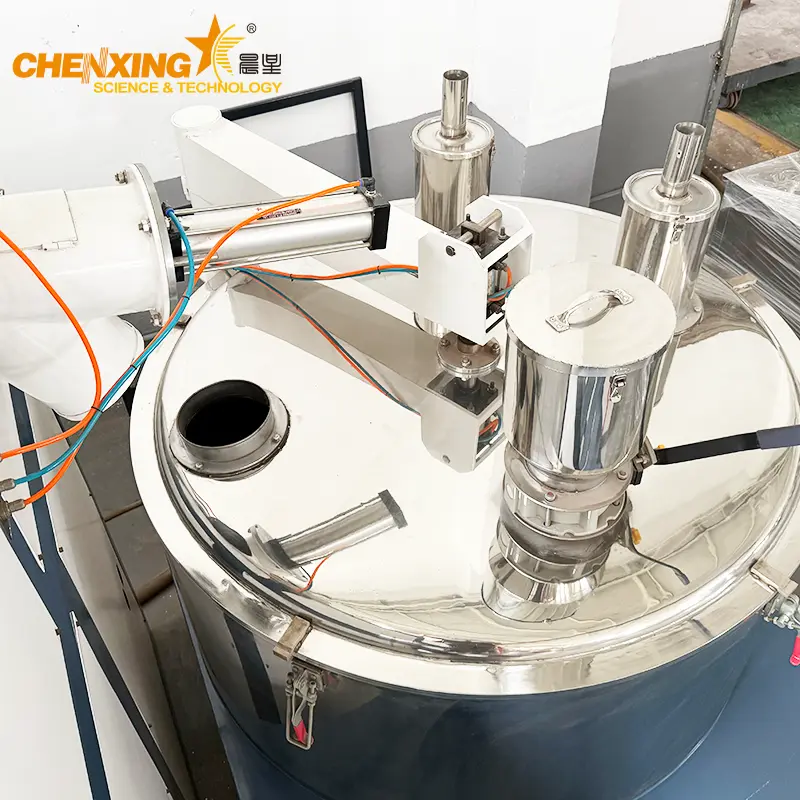

1. Charging & Nitrogen Purge — The operator loads pre-weighed powder coating base powder and metal pigment(s) into the hot mixing chamber through the top charging port. The pneumatic lid locks, and the nitrogen purge sequence begins. Nitrogen flows into the chamber headspace and through the mechanical seal purge points. The zirconia oxygen analyzer monitors O₂ concentration; the PLC holds at this step until O₂ drops below 3%, typically 60–90 seconds. This purge eliminates the dual risks of aluminum pigment oxidation and combustible dust-air mixture formation.


2. Pre-Heating Phase — The jacket hot water circulation pump starts, and the PID-controlled heater brings circulating water to the recipe setpoint (typically 60–85°C depending on the base powder Tg). The stirring paddle begins rotating at low speed (30–40% of rated RPM) to ensure even heat distribution through the powder bed. This phase continues until the product PT100 probe reaches approximately 10–15°C below the target bonding temperature. Pre-heating via jacket alone (without high-speed friction) prevents localized hot spots that could cause premature pigment bonding or particle softening.


3. Ramp-Up & Bonding Phase — The paddle RPM increases to the recipe-set bonding speed (typically 70–90% of rated RPM). Frictional heat from high-speed particle-to-particle and particle-to-paddle contact combines with jacket heating to raise the powder bed temperature at a controlled rate of 2–4°C per minute. As the temperature approaches 3–8°C below the base powder's Tg, the particle surfaces become slightly tacky. Metal pigment flakes — dispersed throughout the powder bed by the turbulent mixing — contact the softened particle surfaces and adhere through physical bonding (van der Waals forces and mechanical interlocking).


4. Auto-Detection Trigger — The PLC's bonding auto-detection algorithm continuously analyzes the slope of the product temperature curve. When metal pigment bonding is substantially complete, the coefficient of friction between particles changes, producing a characteristic change in the temperature-rise rate. The algorithm identifies this inflection and, after a short configurable hold period (typically 10–30 seconds) to ensure complete bonding, triggers the end-of-bonding signal. The entire bonding phase typically lasts 3–8 minutes depending on batch size, pigment type, and base powder formulation.


5. Nitrogen-Protected Discharge — Upon auto-detection trigger, the PLC executes a coordinated discharge sequence: (a) nitrogen flow rate increases momentarily to create positive pressure in the discharge chute; (b) the cold mixer paddle starts rotating at low speed; (c) the pneumatic knife gate valve opens fully in under 1 second. The entire hot batch gravity-discharges into the cold mixing chamber below. The valve closes, and the hot mixer is immediately ready for the next batch — no residual product remains in the chamber or transfer path.


6. Staged Cooling Phase — The cold mixing chamber's zoned water jacket activates sequentially as product fills each zone. The low-shear paddle agitates at 3–5 m/s tip speed, constantly exposing new product surfaces to the cooled chamber wall. Cooling water at 15–25°C circulates through the jacket, extracting heat without causing thermal shock. The product temperature drops from 55–65°C to below 35°C within 5–8 minutes. The gentle cooling profile is essential: rapid quenching can cause differential contraction between the metal pigment and polymer particle, potentially debonding pigments and creating free metal flakes.


7. Discharge & Sieving — Once the product temperature reaches the set discharge threshold (typically ≤ 35°C), the PLC signals cycle complete. The operator opens the cold mixer discharge gate, and the cooled bonded metallic powder flows into a collection container or directly into a vibrating sieve for final classification. A 100–160 μm screen removes any incidental agglomerates. The finished bonded metallic powder is now ready for packaging or direct use in electrostatic spray application.


8. Ready for Next Cycle — Total cycle time (charging through discharge) is 12–20 minutes depending on model and recipe, translating to 3–5 batches per hour for production-scale machines. The CXB control system automatically logs all batch data — temperature curves, motor loads, cycle times, and any alarms — to a CSV file on the HMI's SD card or network drive for quality traceability. Multi-batch production runs of the same recipe require no operator intervention between cycles beyond charging the next batch.

FAQ

1. How does the bonding machine maintain product temperature 3–8°C below the Tg of the powder coating base, and what happens if this window is exceeded?

The bonding process requires the base powder particle surfaces to become slightly tacky — just enough for metal pigments to adhere — without the particles softening to the point of agglomeration. The PT100 product probe measures the powder bed temperature in real time at 10 Hz, feeding a cascade PID loop: the outer loop adjusts the hot water jacket setpoint, while the inner loop modulates paddle RPM to control frictional heat input. If the temperature approaches within 2°C of the Tg, the PLC automatically reduces paddle speed and diverts hot water flow, bringing the temperature back into the safe window within seconds. Exceeding the Tg window causes irreversible particle fusion, producing "grit" particles that clog spray guns and create surface defects. The CXB system prevents this through hardware-enforced temperature ceilings rather than relying on operator vigilance. For epoxy-polyester hybrid powders (Tg typically 55–62°C), the bonding setpoint is typically 48–55°C; for pure polyester (Tg 62–68°C), the setpoint is 55–62°C.

2. How does nitrogen protection prevent aluminum pigment oxidation during bonding, and what purity level is required?

Aluminum flake pigments oxidize rapidly above 40°C in the presence of oxygen, turning dull gray and losing their characteristic metallic brilliance. The CXB nitrogen system addresses this through three mechanisms: (a) chamber atmosphere displacement — nitrogen flooding reduces O₂ concentration below 3% before the heating phase begins; (b) continuous low-flow nitrogen during the bonding cycle compensates for any leakage through seals or the charging port; (c) mechanical seal purge — nitrogen flowing between the dual seal faces prevents pigment dust ingress while also creating an oxygen-free micro-environment at the shaft penetration. Nitrogen purity of ≥ 99.5% (standard industrial grade) is sufficient; higher-purity grades (99.9% or 99.999%) provide no measurable additional benefit for this application. The system consumes 2–8 Nm³ per hour depending on model size, a modest operating cost that directly translates to marketable product quality: bonded aluminum metallic powders retain > 95% of original brilliance after processing.

3. What parameters differ when bonding aluminum flake pigments versus pearlescent mica pigments, and how does the machine accommodate both?

Aluminum flakes (density ~2.7 g/cm³, high thermal conductivity) and pearlescent mica pigments (density ~3.0 g/cm³, low thermal conductivity, platelet morphology) behave fundamentally differently during bonding. Aluminum flakes generate a sharp, easily detected inflection in the temperature-rise curve when bonding completes; auto-detection typically triggers within a ±0.3°C window. Pearlescent pigments, due to lower inter-particle friction, produce a gentler inflection that requires a different detection sensitivity threshold in the PLC algorithm. Additionally, pearlescent pigments are more shear-sensitive — excessive paddle speed can fracture the mica platelets, destroying the pearl effect. The CXB addresses this through recipe-specific parameter sets: each recipe stores not only the target temperature but also the auto-detection sensitivity profile, maximum paddle RPM limit, and ramp rate. For production facilities running both pigment types — a common scenario in powder coating manufacturing — the one-touch recipe recall allows switching between aluminum and pearlescent bonding parameters in seconds with no manual recalibration.

4. How does the bonding machine guarantee batch-to-batch consistency, and what is the typical variation across a full production run?

Batch consistency is driven by three integrated systems: (a) the bonding auto-detection algorithm that triggers discharge at the same physical state of bonding completion every cycle, removing human judgment variability; (b) the VFD-controlled paddle drive that maintains RPM within ±0.5% of setpoint regardless of load variation, ensuring identical shear and friction input batch-to-batch; (c) the recipe management system that stores and precisely recalls all parameters — there is no "tweaking by feel" between batches. In practice, the product temperature at bonding endpoint varies by less than ±1°C across a 20-batch production run. The resulting bonded powder, when electrostatically sprayed and cured, shows ΔE < 0.5 (CIE Lab color difference) for solid colors or ΔE < 1.0 for metallic effects between the first and last batch — well within typical automotive and architectural specification limits of ΔE < 1.5. This consistency directly supports the growing "liquid-to-powder" trend where powder must match liquid paint appearance standards previously unattainable with dry-blended metallic powders.

5. How does properly bonded metallic powder improve overspray recovery and recyclability compared to dry-blended powder?

In dry-blended (unbonded) metallic powder, the metal flakes and base powder particles carry different electrostatic charges during spray application due to their dissimilar electrical properties — aluminum flakes typically charge less efficiently than polymer particles. The result: metal flakes deposit preferentially at the workpiece edges (Faraday cage areas) while the center receives polymer-rich powder, producing visible color variation. More critically, the overspray powder collected in the recovery system has a different metal-to-base ratio than the virgin powder, making it unusable for re-spray without blending. Recovery rates are typically limited to 10–20% of overspray. In properly bonded powder, every particle — base polymer with metal pigment attached — carries essentially identical charge characteristics. The deposition is uniform across the entire part, and the overspray composition is identical to the virgin powder. This enables 95–100% overspray recyclability: recovered powder can be continuously reintroduced into the feed hopper without any composition adjustment. For a medium-sized coating line spraying 200 tons of metallic powder annually, the difference between 15% and 95% recovery translates to approximately 160 tons of powder saved per year — a direct material cost reduction that alone justifies the bonding machine investment. This is why bonding machines have become standard equipment in any professional powder coating facility producing metallic finishes.

Why Choose Chenxing Machinery?

Chenxing Machinery, headquartered in Zhangjiagang City, Jiangsu Province, is a specialized manufacturer of powder coating production equipment and plastic processing machinery with over 20 years of engineering heritage. We design, manufacture, and commission complete production solutions:

• Powder Coating Equipment — Bonding machines, pulverizers, mixers, and complete powder coating production lines

• Extruders — Single-screw, conical twin-screw, and parallel twin-screw compounding extruders

• Pelletizing Lines — Strand, water-ring, and underwater pelletizing systems

• Recycling Lines — Complete washing, crushing, and re-pelletizing solutions

• Profile & Pipe Extrusion Lines — Including PVC pipe lines and WPC lines

• Auxiliary Equipment — Crushers, shredders, vibrating screens, chillers, loaders, and dust collectors

Every CXB bonding machine undergoes a factory acceptance test (FAT) before shipment, including a minimum 8-hour continuous bonding run with the customer's specified powder coating formulation. We maintain a comprehensive spare parts inventory for same-day dispatch, and our application engineering team provides remote video assistance for commissioning, recipe development, and operator training. Explore our full product catalog, browse industry solutions, or read our latest news and case studies for application insights.

Request a Quote — 4 Simple Steps

1. Tell Us About Your Powder — Specify the type(s) of powder coating base resin (polyester, epoxy, epoxy-polyester hybrid, polyurethane, acrylic), the metal pigments you intend to bond (aluminum flake, bronze/copper-gold, pearlescent mica, stainless steel flake), and your desired batch size or annual production volume.


2. Define Your Requirements — Indicate your target hourly throughput, available floor space, utility specifications (power supply, cooling water temperature, nitrogen availability), and any special requirements such as ATEX compliance or integration with existing powder coating production lines.


3. Receive a Tailored Proposal — Within 24 business hours, you will receive a detailed quotation including the recommended CXB model, full system configuration (PLC brand, motor brand, chiller specification), shipping terms, installation requirements, and estimated delivery lead time.


4. Start Production — After order confirmation, we conduct a pre-delivery bonding test run with your formulation, ship the complete system, and provide on-site or remote commissioning support — including recipe development for your specific powder and pigment combinations — to get you into full production rapidly.
