PVC Corner Bead & Profile Extrusion Line

Overview

The PVC Corner Bead Profile Extrusion Line from Chenxing Machinery is a fully integrated solution for manufacturing PVC corner beads, skirting boards, cable trunking, ceiling panels, wall panels, and L-shape angle profiles. Five standardized models—YF120 (120 kg/hr) through YF600 (400 kg/hr)—cover product cross-sections from 120×50 mm up to 550×120 mm, making the line suitable for both entry-level workshops and high-volume industrial plants.

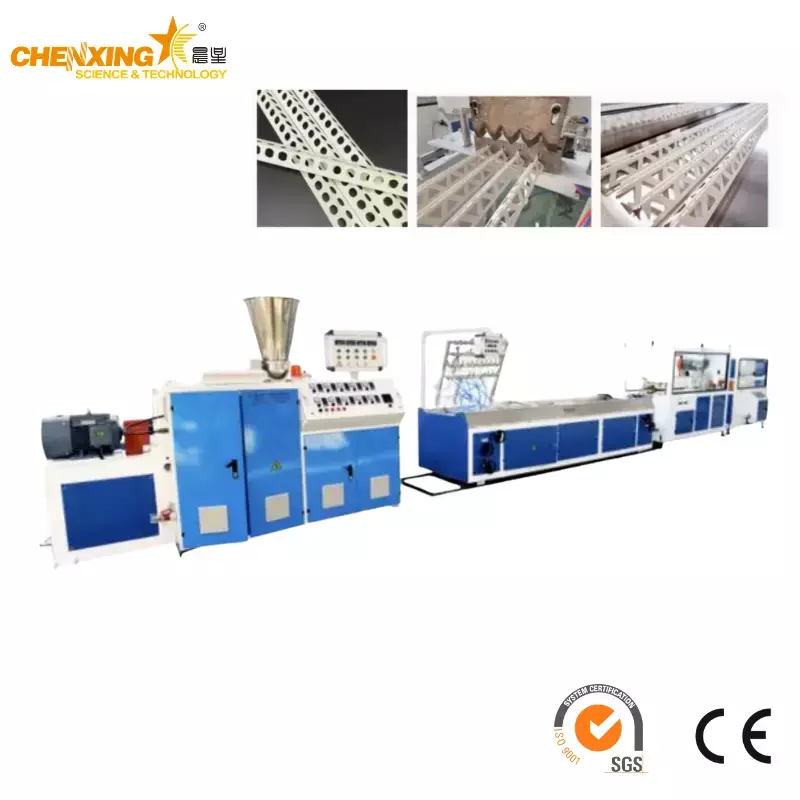

Each line combines a conical twin-screw extruder, a profile extrusion die head, a stainless-steel vacuum calibration table, a haul-off machine, a profile cutter, and a stacker. An optional inline hydraulic punching machine adds three-sided punching capability at 6 m/min. Surface decoration options—hot-stamping, lamination, or dual-color printing—are handled on downstream equipment; complete turnkey solutions are available through our profile extrusion line overview page.

Technical Parameters

For detailed specifications and an engineering consultation, visit our solutions page or browse the full product catalog.

System Configuration — Component-by-Component Engineering Detail

Browse our complete auxiliary equipment range for compatible units including crushers and pelletizing lines.

Core Features

1. 38CrMoAlA Nitrided Screws & Barrels — Screw and barrel are manufactured from 38CrMoAlA alloy steel, gas-nitrided to 0.5–0.7 mm case depth with surface hardness ≥ HV 900. This delivers exceptional wear resistance when processing high-filler (up to 50 phr CaCO₃) rigid PVC formulations over multi-year production cycles.


2. 38:1 L/D Ratio Option — The extended 38:1 L/D screw design achieves full plastication even at maximum throughput. Compared with 33:1, output rises 30% while specific energy consumption (kW·hr/kg) drops up to 30%, producing nearly linear extrusion behavior that simplifies downstream calibration.


3. Omron Intelligent Temperature Control (±1 °C) — Each barrel zone is independently regulated by an Omron PID controller with auto-tuning. Air-cooled ceramic band heaters eliminate thermal overshoot and reduce maintenance compared with mica-band alternatives.


4. Spiral-Flow Die Head at 19–20 MPa — The die head's spiral-channel geometry distributes melt evenly across all profile sections. Mirror-polished flow surfaces and stable 19–20 MPa back-pressure minimize die swell, delivering tight wall-thickness tolerances (±0.05 mm achievable on symmetric profiles).


5. Double-Chamber Stainless-Steel Calibration — The two-chamber vacuum calibration table combines rapid initial setting with controlled secondary cooling. Aluminum-bronze calibrator blocks provide 3× the thermal conductivity of stainless steel, accelerating line speed without sacrificing dimensional accuracy.


6. Infrared Closed-Loop Haul-Off Control — An infrared tracking sensor measures actual profile speed and feeds back to the haul-off inverter, compensating for slip and thermal expansion to maintain consistent cross-section along the entire production run.


7. Siemens PLC Integration — Extruder, cutter, and optional punching machine share a unified Siemens PLC/HMI ecosystem. Operators monitor melt pressure, temperature profiles, line speed, and production counters from a single touch-screen interface.


8. Ultra-Low Operating Cost — The YF120 configuration consumes as little as 25 kW/hr total installed power, translating to approximately USD 0.10/kWh). Combined with minimal manpower (1–2 operators per line), the payback period is highly competitive for PVC profile converters.


9. Rapid Model Changeover — Quick-clamp die-head coupling, adjustable-width haul-off pads, and plug-in calibrator blocks enable a complete profile-change cycle in under 45 minutes for experienced operators.


10. Full Formula Compatibility — The line processes rigid PVC (RPVC), foamed PVC (with endothermic/exothermic blowing agents), and wood-plastic composite (WPC) formulations. For dedicated WPC applications, see our WPC extrusion line product page.

Production Process

Step 1 — Raw Material Dosing & Mixing
PVC resin powder, calcium carbonate filler, heat stabilizers (Ca/Zn or organotin), lubricants (PE wax, stearic acid), impact modifiers (CPE/ACR), and processing aids are accurately weighed according to the target formulation and fed into the high-speed mixer. Hot mixing at 110–120 °C drives off moisture and ensures homogeneous dispersion of all additives; the compound is then transferred to the cold mixer for cooling to ≤40 °C, preventing premature degradation.

Step 2 — Powder Feeding
The cooled dry blend is conveyed by a vacuum loader or screw feeder into the extruder hopper. A level sensor maintains consistent head pressure above the feed throat to avoid bridging and ensure stable mass flow into the screw.

Step 3 — Plastication & Extrusion
Inside the conical twin-screw extruder, counter-rotating intermeshing screws progressively compress, shear, and melt the compound at barrel temperatures rising from 160 °C (feed zone) to 185–195 °C (metering zone). The 38CrMoAlA nitrided screws and barrels withstand the abrasive calcium carbonate filler while maintaining precise clearance to minimize back-flow.

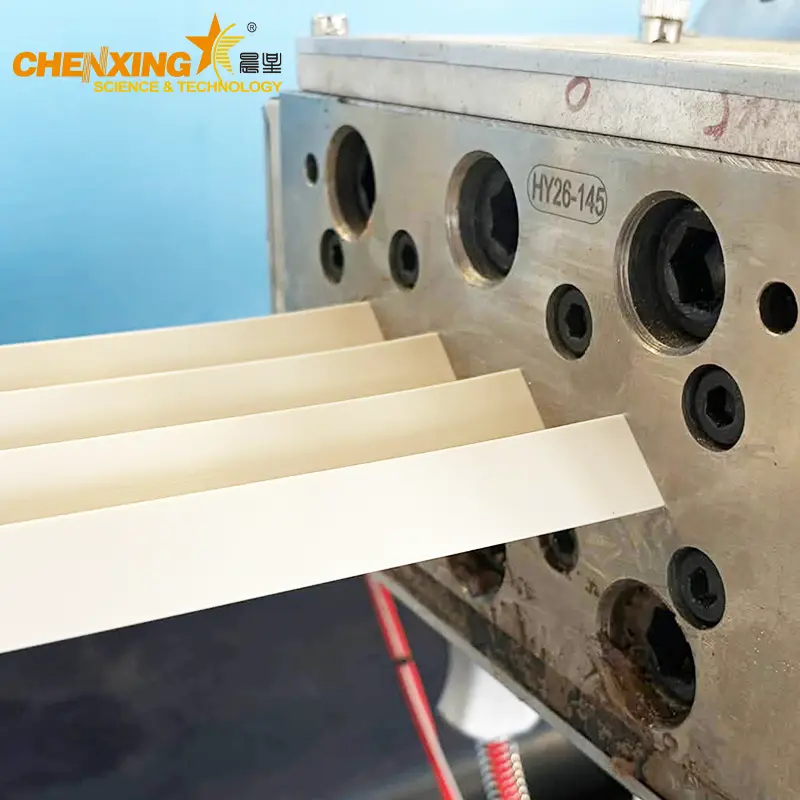

Step 4 — Die Shaping
The homogeneous melt enters the extrusion die head, where the spiral-channel geometry redistributes flow before it converges at the die lip. Melt pressure of 19–20 MPa ensures consistent delivery to all profile edges. A core-cooling circuit prevents localized overheating in thicker wall sections.

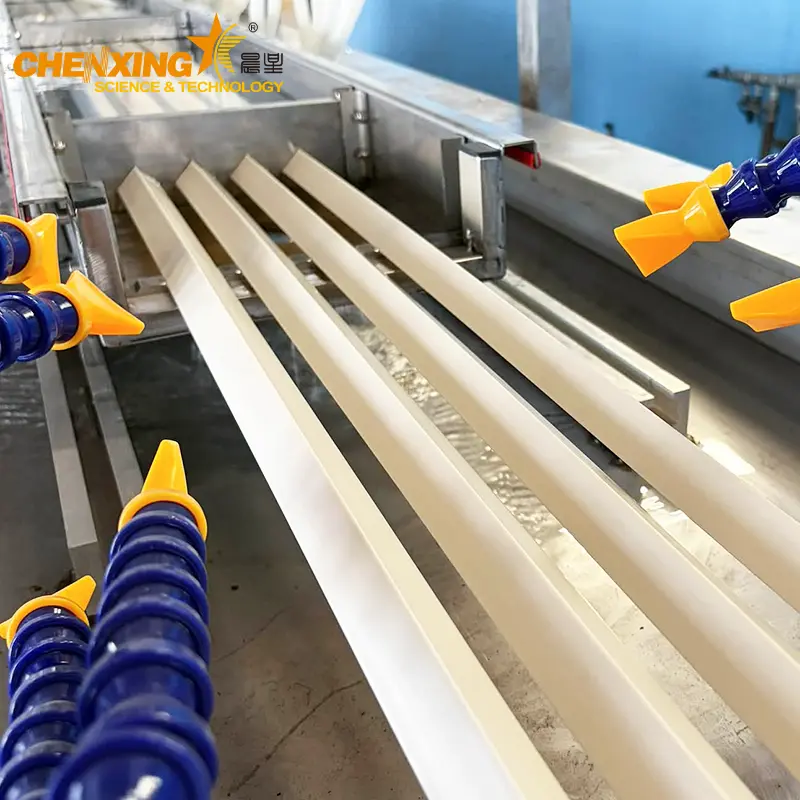

Step 5 — Vacuum Calibration & Sizing
The hot profile exits the die and immediately enters the stainless-steel vacuum calibration table. Negative pressure (typically −0.03 to −0.06 MPa) draws the soft PVC against the aluminum-bronze calibrator surfaces, while chilled water spray rapidly solidifies the outer skin. The double-chamber design allows aggressive initial quenching followed by gradual cooling to relieve internal stress.

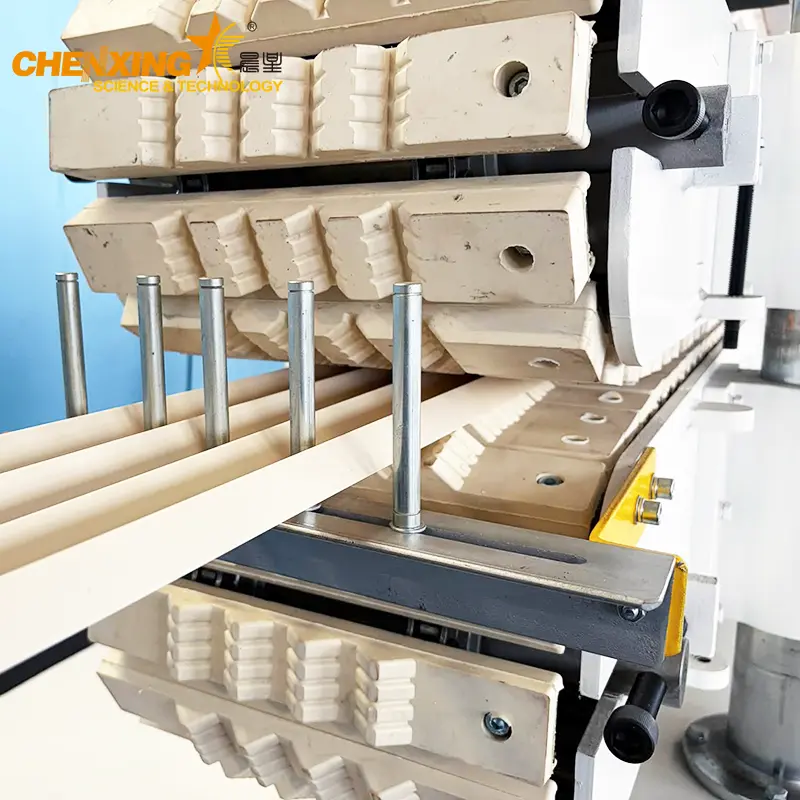

Step 6 — Haul-Off & Traction
The solidified profile is gripped by the multi-claw haul-off machine, which applies steady, slip-free traction at a speed synchronized with the extrusion rate. Infrared feedback corrects for any speed deviation, preventing neck-down or wall-thickness drift.

Step 7 — Cutting to Length
The flying saw cutter travels in synchronization with the profile and executes a clean, chamfered cut at the pre-set length (±1 mm accuracy). A dust-collection system captures PVC sawdust for a cleaner factory environment.

Step 8 — Stacking & Packaging
Finished profiles are tilted onto the stacker rack, batch-counted, and ready for manual bundling or automatic shrink-wrapping.

Optional — Inline Punching

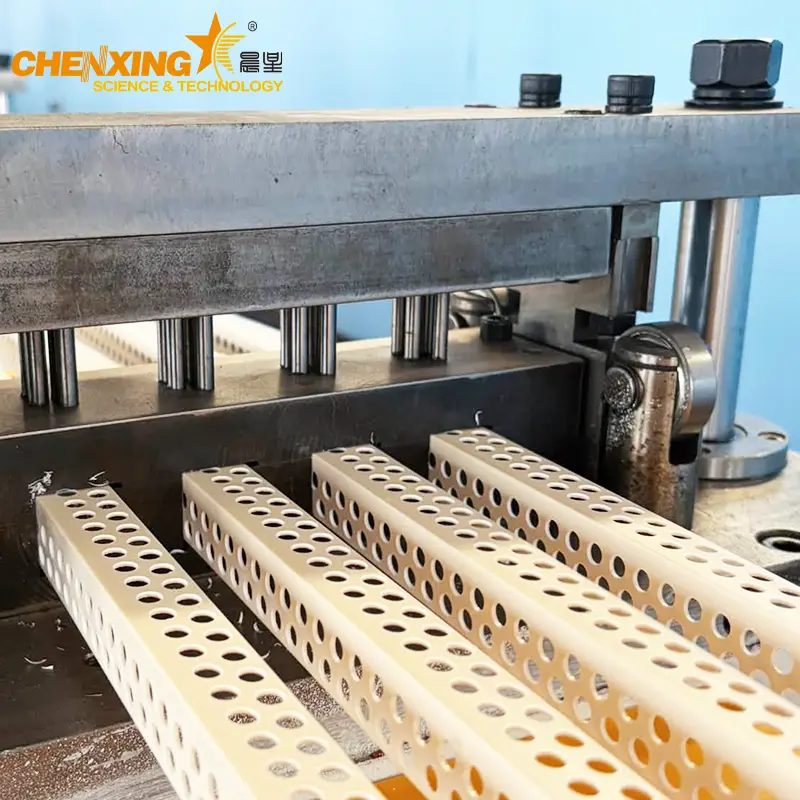

For cable trunking and slotted profiles, the hydraulic punching machine punches three sides simultaneously at 6 m/min with ±0.5 mm positional accuracy, fully synchronized with the upstream haul-off velocity.

FAQ

1. How does the 38:1 L/D ratio improve PVC profile extrusion compared with 33:1?

A 38:1 L/D screw provides approximately 15% additional residence time inside the barrel, allowing complete plastication of rigid PVC even at maximum throughput. This nearly eliminates un-melted particle defects in thin-wall corner beads. Users typically observe 25–30% higher output, 20–30% lower specific energy consumption (kW/kg), and a wider processing window that tolerates formulation variability. For production lines running ≥80% of rated capacity across multiple shifts, the 38:1 upgrade pays for itself through reduced scrap and energy savings within 12–18 months.

2. What role does the spiral-channel die-head design play in wall-thickness uniformity?

The spiral mandrel geometry distributes melt through multiple evenly spaced helical channels, merging flow streams before they reach the die lip. This eliminates weld lines and stagnation zones that cause asymmetric swelling. Combined with mirror polishing (Ra ≤0.2 μm) and stable back-pressure at 19–20 MPa, the design achieves wall-thickness variation ≤±0.05 mm across complex asymmetric profile cross-sections—critical for corner beads where inconsistent thickness causes installation-fit problems in the field.

3. Can this line process both rigid PVC and foamed PVC formulations?

Yes. When processing rigid PVC, barrel temperatures follow the standard 160–195 °C profile. For foamed PVC (Celuka or free-foam processes), temperatures are reduced to 155–180 °C to prevent premature blowing-agent decomposition. The extruder's venting port allows moisture and volatiles to escape before the melt enters the die. The calibration table applies reduced vacuum (−0.01 to −0.03 MPa) to preserve the foam cell structure, and the haul-off speed is tuned to control foam density between 0.5–0.8 g/cm³.

4. How fast can operators switch between different profile shapes on this extrusion line?

The line incorporates quick-clamp die-head coupling, plug-in calibrator blocks, and adjustable-width haul-off pads. An experienced two-person crew can complete a full changeover—including die swap, calibrator exchange, haul-off width adjustment, cutter-length re-setting, and temperature profile loading—in approximately 40–50 minutes. For production plants running 3–5 profile SKUs daily, this translates to an extra 1.5–2 hours of productive runtime per day versus lines with bolted die connections.

5. What determines the punching accuracy of the optional inline punching machine?

The servo-driven fixed-length conveyor measures profile travel using encoder feedback with a resolution of 0.01 mm per pulse. The PLC executes a position-compare algorithm that triggers the hydraulic punch only when the profile target position matches the encoder reading, accounting for real-time line speed (up to 6 m/min). The 75 L oil tank with tubular cooler maintains hydraulic oil temperature below 55 °C, ensuring consistent ram response time and ±0.5 mm punch-position repeatability across 8-hour continuous shifts.

Why Choose Chenxing

Chenxing Machinery, based in Zhangjiagang City, Jiangsu Province, has over two decades of engineering experience in plastic extrusion equipment. Our about us page details the manufacturing facility and quality systems.

• End-to-End Integration: We design and manufacture the core components—conical twin-screw extruders, extrusion dies, calibration tables, haul-offs, and cutters—in-house, avoiding integration issues that arise from mixing third-party subsystems.

• Proven Field Performance: More than 200 profile extrusion lines are operating in over 30 countries across Southeast Asia, the Middle East, South America, and Africa.

• Low Total Cost of Ownership: 38CrMoAlA nitrided screws, ceramic heaters, Omron PID controllers, and Siemens PLCs reduce energy consumption, extend maintenance intervals, and lower spare-parts expenditure over the line's 10+ year service life.

• Formula Support: Our engineering team provides formulation guidance for rigid PVC, foamed PVC, and WPC compounds. For granulation, see our pelletizing line. For recycling scrap, browse crushers and recycling lines.

• Complete Project Execution: From factory layout design and single-screw extruder integration to on-site commissioning and operator training, Chenxing delivers turnkey projects. See pipe extrusion lines for related pipe solutions.

Read our latest news for installation case studies and trade-show schedules. For technical inquiries and a custom quotation, please contact us.

Start Your Inquiry in 4 Steps

Step 1 — Define Your Product
Tell us the profile cross-section (width × height in mm), wall thickness, material (rigid PVC foamed PVC WPC), and target output (kg/hr). A dimensioned drawing or sample photo accelerates the process.

Step 2 — Receive a Tailored Proposal
Our engineering team will recommend the optimal model (YF120–YF600), specify all component configurations, provide a detailed quotation, and include a factory-layout drawing showing the 18–28 m line footprint.

Step 3 — Confirm & Visit
Review the proposal, then schedule a visit to our Zhangjiagang factory to witness a live trial run on your actual profile tooling before shipment.

Step 4 — Production & Delivery
Lead time is typically 35–60 days. Chenxing dispatches a commissioning engineer to your factory for installation, startup, and training. Lifetime technical support follows.
