With the rapid growth of DIY crafts, educational toys, and creative materials, Perler beads (also known as fuse beads or ironing beads) have become a high-demand product globally. However, producing consistent, high-precision plastic beads at industrial scale is not a simple task.
This is where a Perler Beads Extrusion Line plays a critical role.
In this article, we will explain:
What a Perler beads extrusion line is
How it works
Key technical specifications
Why it is essential for manufacturers
How to choose the right system

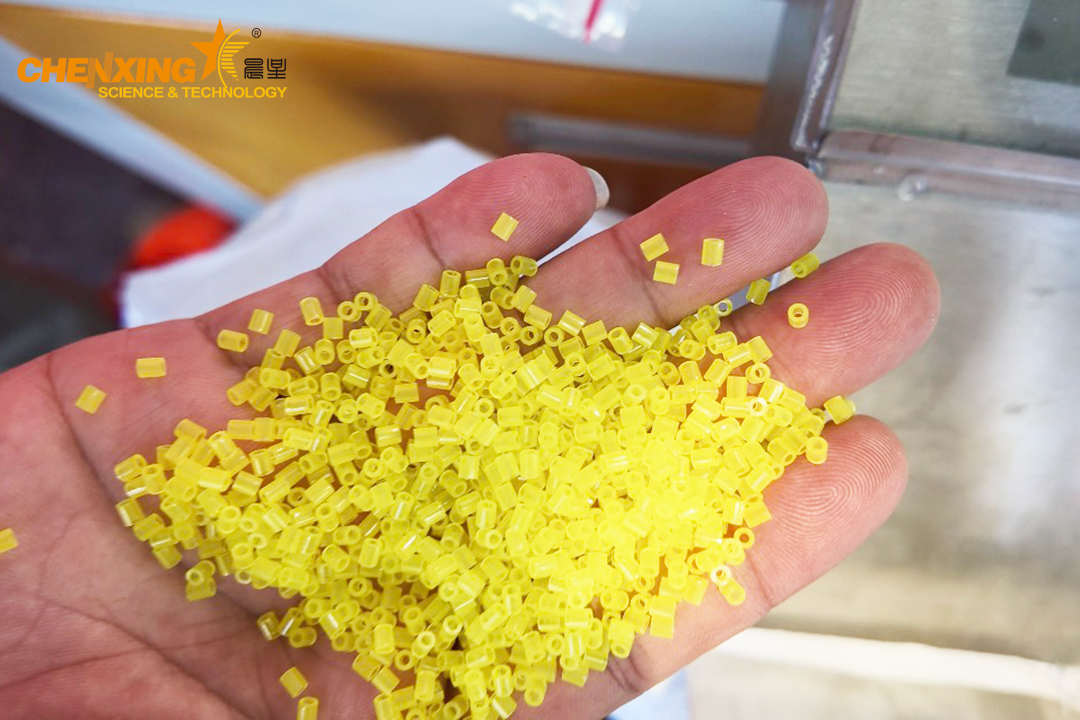

A Perler beads extrusion line is a specialized plastic extrusion system designed to continuously produce small, uniform plastic beads (typically 2–6 mm in diameter) from thermoplastic materials such as PP (Polypropylene) and PS (Polystyrene).
Unlike standard extrusion lines, this system requires:
Extremely high dimensional precision
Stable extrusion pressure
High-speed cutting synchronization
Tight tolerance control (±0.05 mm)
These requirements ensure compatibility with pegboards and consistent melting behavior during the ironing process.
A complete Perler beads production system follows a highly integrated and continuous process:
Production Process Flow:
Raw Material Feeding
→ Plasticizing (Melting in Extruder)
→ Precision Tube Extrusion
→ Vacuum Calibration
→ Water Cooling
→ Haul-Off Unit
→ High-Speed Cutting
→ Finished Beads Collection
Plasticizing Stage: Ensures uniform melt quality through optimized screw design (L/D ratio 28:1).
Precision Die System: Forms consistent micro-tube structures before cutting.
Vacuum Calibration: Maintains dimensional accuracy and roundness.

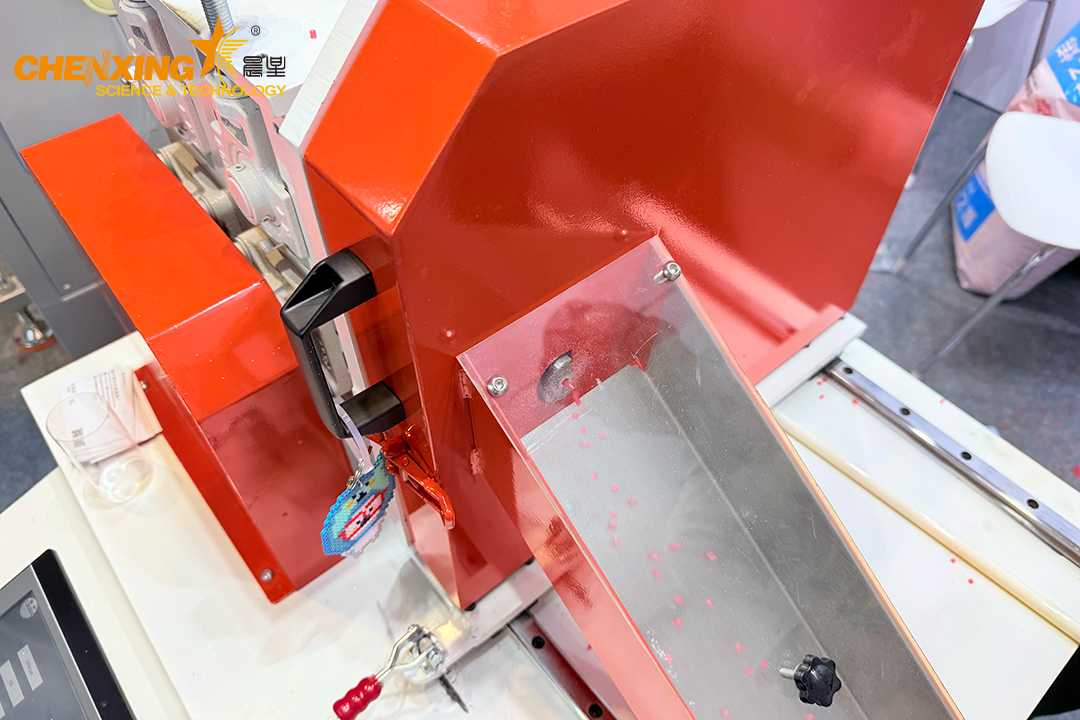

High-Speed Cutting: Converts extruded material into uniform beads at extremely high throughput.
This integrated workflow guarantees stable geometry and continuous production efficiency.
| Parameter | Specification |
|---|---|
| Model | SJ45 |
| Screw Diameter | 45 mm |
| L/D Ratio | 28:1 |
| Main Motor Power | 11 kW |
| Bead Diameter Range | 2–6 mm |
| Diameter Tolerance | ±0.05 mm |
| Production Capacity | Up to 24,000 beads/min |
High Output Efficiency: Ideal for large-scale production
Precision Control: Critical for premium-quality craft products
Energy Optimization: Balanced power consumption for continuous operation
A standard Perler beads extrusion line includes:
Single Screw Extruder (SJ45)

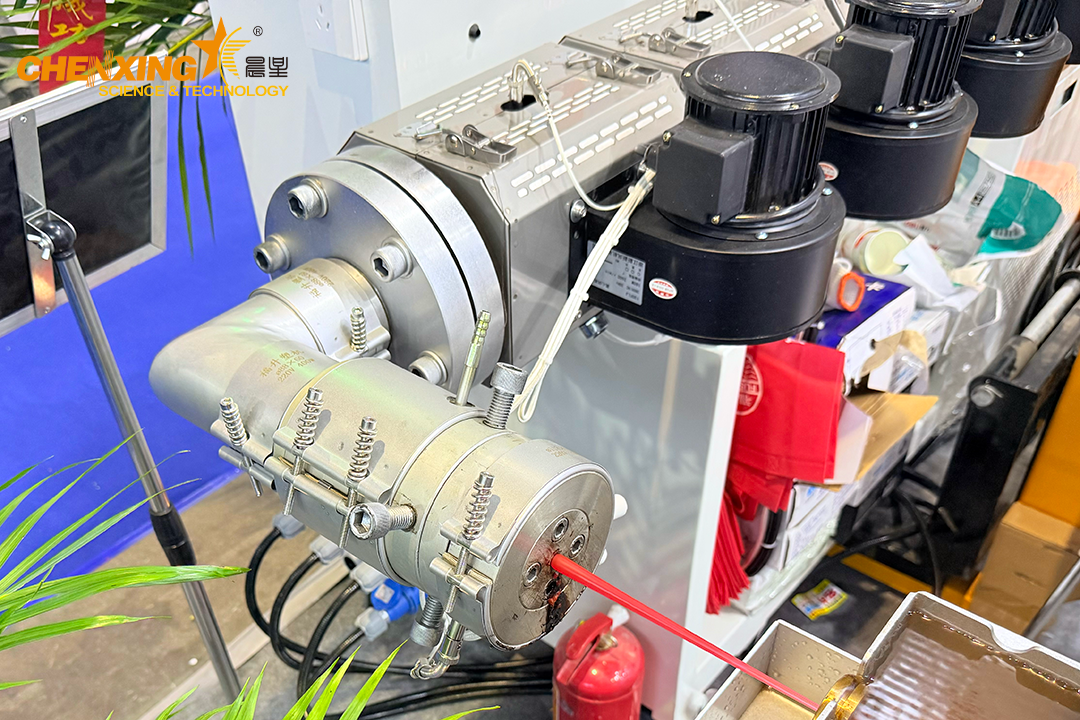

Precision Micro Tube Die Head
Stainless Steel Vacuum Cooling Tank (6 meters)

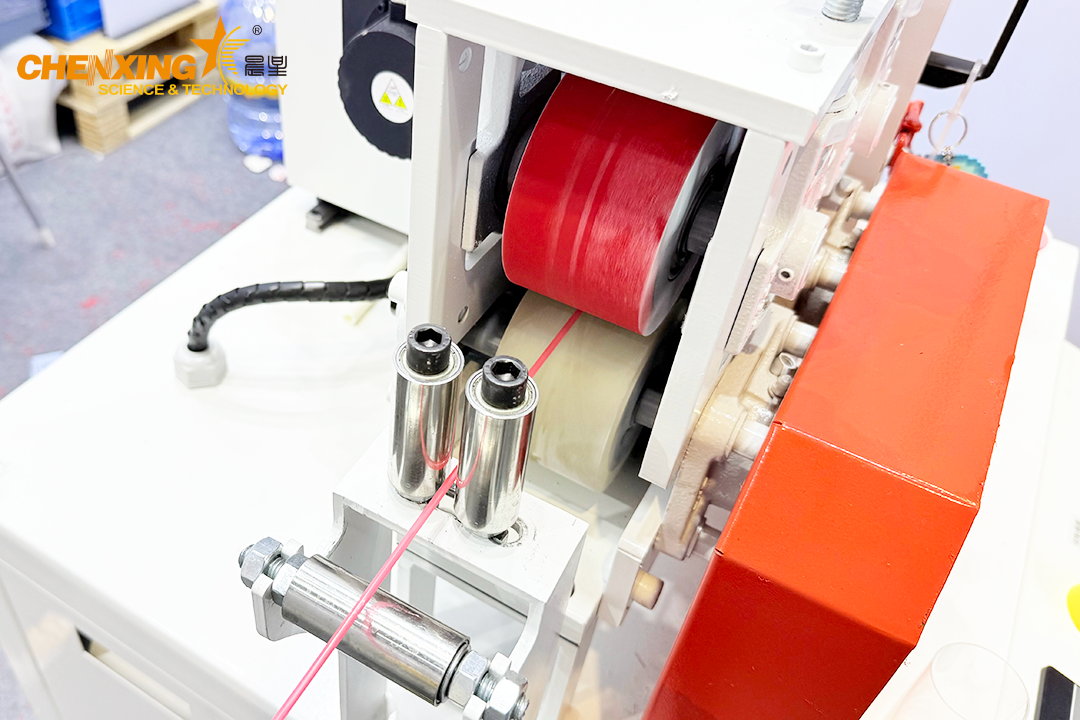

High-Speed Haul-Off & Cutting Machine
Centralized Electrical Control Cabinet
Automatic Vacuum Feeder
Gravimetric Dosing System
Color Masterbatch Mixing Unit
Online Inspection System
These optional modules significantly improve:
Automation level
Material consistency
Product quality stability
Tolerance control within ±0.05 mm ensures compatibility with international standards.
Up to 24,000 beads per minute, drastically reducing unit production costs.
Optimized screw design ensures:
Uniform melting
Stable pressure
Continuous production
Compatible with:
PP
PS
Other thermoplastic materials
Centralized control system
User-friendly interface
Low maintenance requirements
In the Perler beads industry, precision = product value.
Low-quality beads can lead to:
Poor fusion performance
Irregular shapes
Customer dissatisfaction
A high-quality extrusion line ensures:
Consistent bead geometry
Strong market competitiveness
Lower rejection rates
Higher profit margins
When selecting equipment, focus on:
Small-scale: Entry-level configuration
Large-scale: High-speed automated line
Educational toys require tighter tolerances
Export markets demand higher consistency
Manual vs fully automated systems
Integration with dosing & inspection systems
Choose manufacturers with:
Proven project cases
Strong technical support
Customization capabilities
A Perler beads extrusion line is not just a machine—it is a complete manufacturing solution that determines your product quality, efficiency, and competitiveness in the global market.
If you are planning to enter or expand in the Perler beads industry, investing in a high-performance extrusion line is the most critical step.
