How Does A PVC Pipe Extrusion Line Work? A Complete Guide for Manufacturers in 2026

PVC pipe extrusion lines are essential equipment in modern plastic pipe manufacturing. From water supply pipes to electrical conduits and drainage systems, PVC pipes are widely used due to their corrosion resistance, lightweight structure, and cost efficiency.

A complete PVC pipe extrusion line usually consists of:

· Conical twin screw extruder

· Vacuum calibration tank

· Cooling tank

· Haul-off unit

· Cutting machine

· Stacker

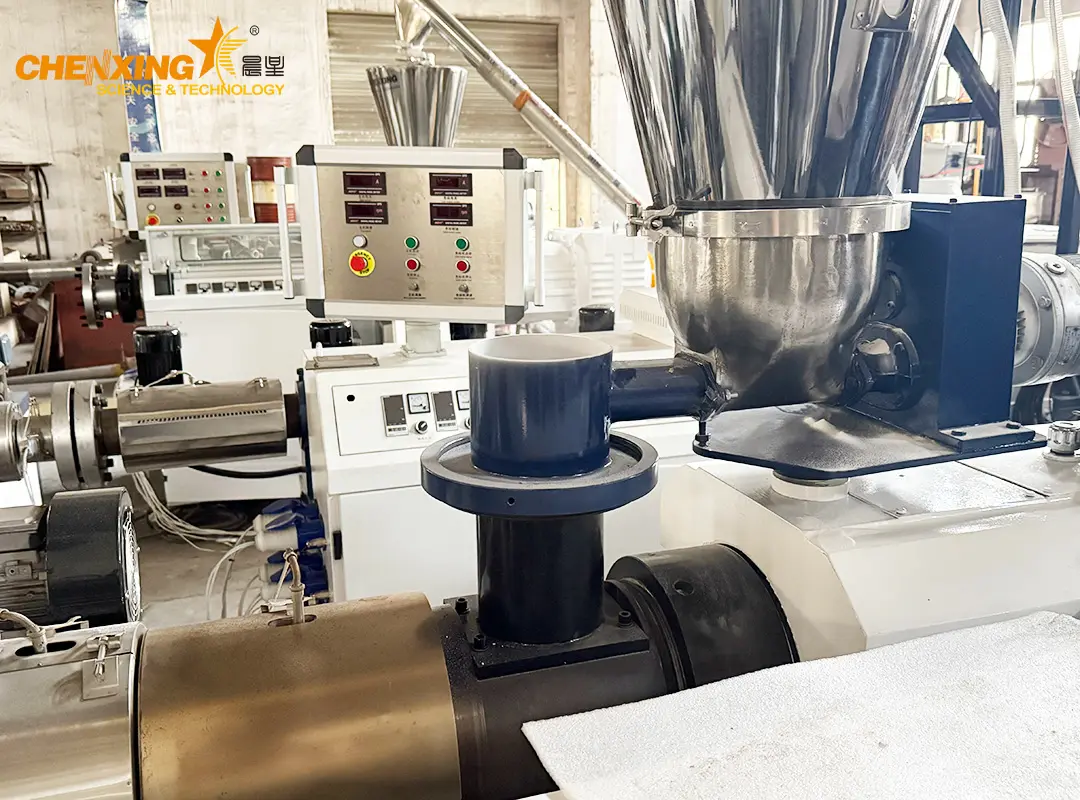

For UPVC and CPVC pipe production, the SJSZ series conical twin screw extruder is commonly used because of its stable plasticizing performance and excellent mixing capability.

The production process starts with PVC resin and additives entering the mixer system. The material is then transported into the extruder where the screws heat and plasticize the raw material.

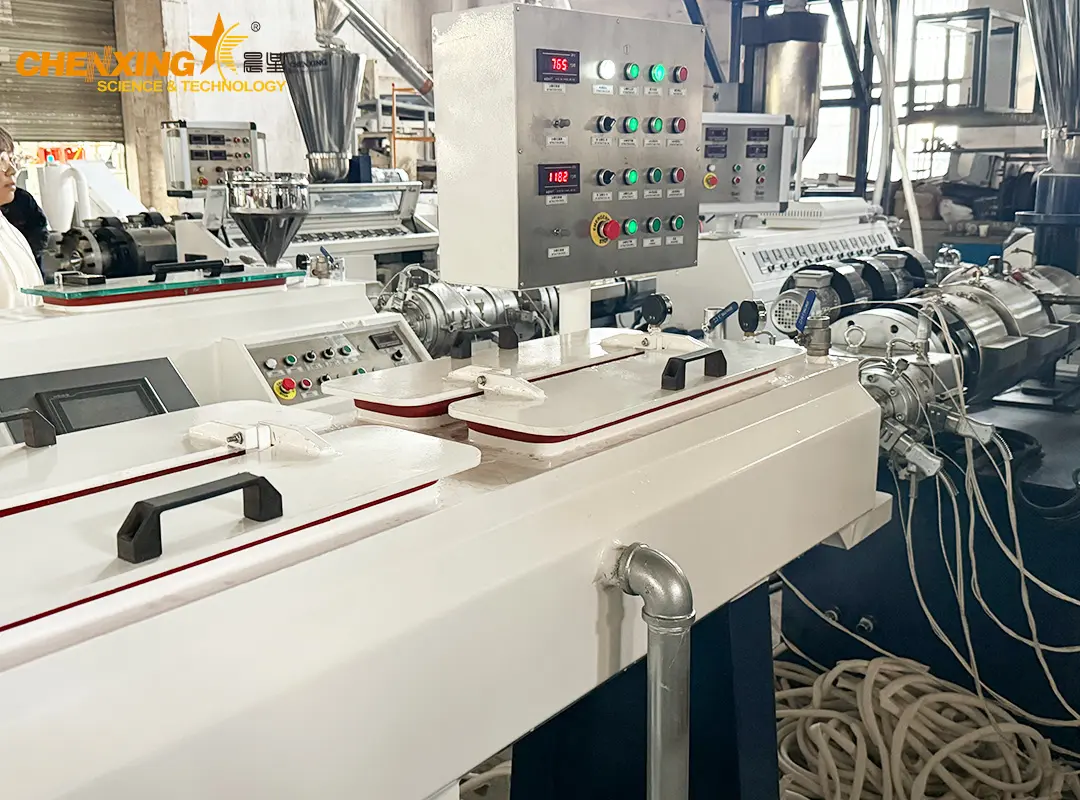

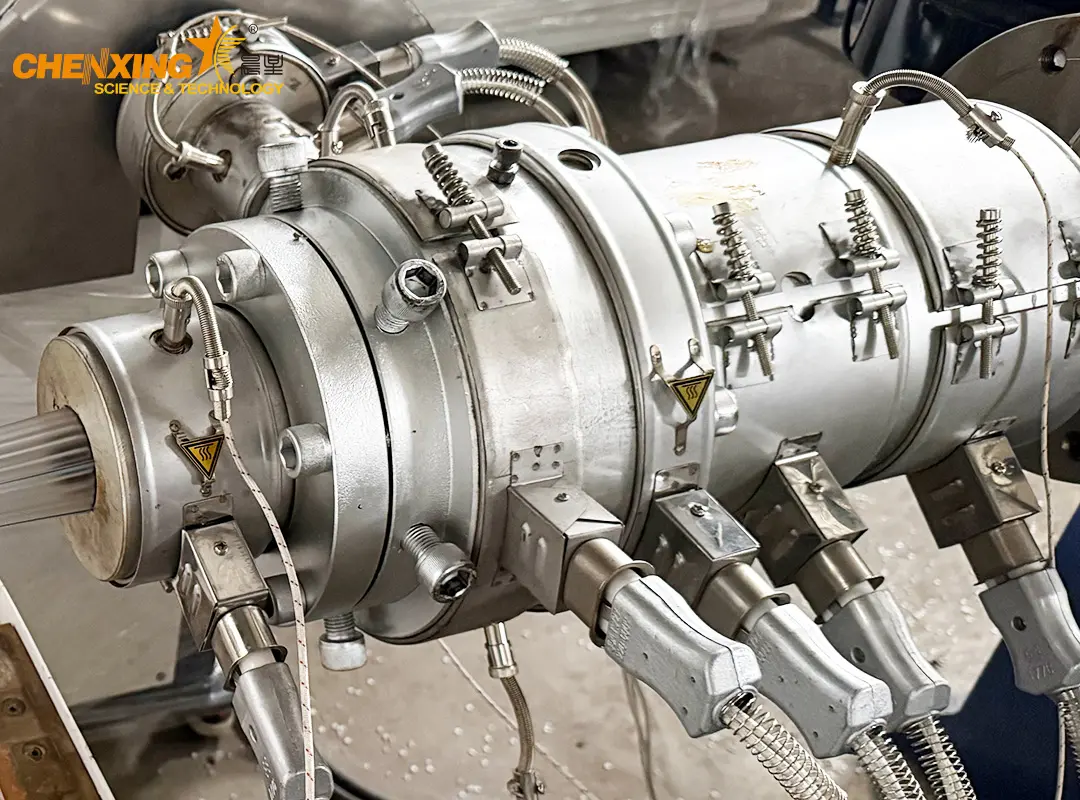

The molten PVC passes through the die head and forms the pipe shape. After that, the pipe enters the vacuum calibration tank to maintain dimensional accuracy.

Cooling tanks help stabilize the pipe before the haul-off machine pulls it forward at a synchronized speed. Finally, the cutting unit cuts the pipe according to preset lengths.

Modern PVC pipe extrusion lines can produce:

· UPVC pipes

· CPVC pipes

· Electrical conduit pipes

· Drainage pipes

· Agricultural pipes

· Water supply pipes

Advanced extrusion lines also support automatic PLC control systems, energy-saving motors, and online diameter monitoring.

Manufacturers today focus on high output, low energy consumption, and stable operation to improve profitability.

PVC Pipe Market Trends and Industry Demand

The global PVC pipe market continues to expand because of increasing infrastructure investment, urban water supply projects, agricultural irrigation systems, and electrical conduit demand. PVC pipes are widely preferred because they are lightweight, corrosion resistant, easy to install, and cost effective compared with metal pipes.

Developing countries are rapidly increasing investment in municipal water systems, which has significantly increased demand for reliable PVC pipe extrusion machinery. At the same time, developed markets are focusing on energy-saving manufacturing systems and intelligent automation.

Modern PVC pipe manufacturers are increasingly looking for:

· High output extrusion systems

· Energy-saving production technology

· Intelligent PLC control systems

· Stable long-term operation

· Low maintenance requirements

· Multi-layer and multi-cavity pipe production capability

As environmental regulations become stricter, more factories are also focusing on material recycling, energy efficiency, and optimized production processes.

Advantages of Modern PVC Pipe Extrusion Technology

Compared with older production equipment, modern PVC pipe extrusion lines provide several advantages:

· Higher production speed

· Lower power consumption

· Better dimensional stability

· Reduced material waste

· Improved automation

· Lower labor requirements

· Easier maintenance

· More stable extrusion pressure

Conical twin screw extrusion systems are particularly suitable for PVC powder materials because they provide strong mixing performance and stable plasticizing capability.

For manufacturers producing electrical conduit pipes, drainage pipes, and pressure pipes, modern extrusion systems can greatly improve productivity while maintaining consistent product quality.

Importance of Automation in PVC Pipe Manufacturing

Automation has become one of the most important factors in modern pipe manufacturing.

Advanced extrusion lines now include:

· PLC intelligent control systems

· Automatic temperature adjustment

· Servo synchronization systems

· Online diameter measurement

· Automatic alarm systems

· Remote monitoring technology

These technologies help reduce operator errors while improving production consistency.

Factories with automated systems can also reduce labor costs and improve overall operational efficiency.

Raw Material Considerations for PVC Pipe Production

The quality of raw materials directly affects finished pipe quality.

Typical PVC pipe formulations include:

· PVC resin

· Calcium carbonate

· Stabilizers

· Lubricants

· Impact modifiers

· Processing aids

Different applications require different material formulations.

For example:

· UPVC pipes require rigid formulations

· CPVC pipes require higher temperature resistance

· Electrical conduit pipes require flame-retardant properties

· Water supply pipes require pressure resistance

Choosing the right formulation improves pipe performance and extrusion stability.

Why Buyers Choose Chinese PVC Pipe Extrusion Machine Manufacturers

China has become a leading supplier of plastic extrusion machinery because Chinese manufacturers offer:

· Competitive prices

· Mature manufacturing technology

· Fast delivery time

· Customized machine solutions

· Rich export experience

· Complete turnkey projects

Many Chinese suppliers also provide overseas installation, commissioning, and operator training services.

For global buyers, choosing a reliable supplier with strong technical support is critical for long-term production success.

How to Improve PVC Pipe Production Efficiency

Manufacturers can improve efficiency through:

· Optimized screw designs

· Stable raw material feeding

· Accurate temperature control

· Efficient cooling systems

· Intelligent automation

· Regular equipment maintenance

Routine maintenance of screws, barrels, heaters, and vacuum systems helps prevent unexpected downtime and improves machine lifespan.

Future Trends in PVC Pipe Extrusion Industry

The PVC extrusion industry is evolving toward:

· Smart factories

· Energy-saving technology

· AI-assisted production control

· Remote diagnostics

· High-speed extrusion systems

· Multi-layer pipe production

· Sustainable manufacturing

Manufacturers investing in advanced extrusion technology will gain stronger competitiveness in the global market.

FAQ

What is the function of a PVC pipe extrusion line?

A PVC pipe extrusion line converts PVC raw materials into finished plastic pipes through heating, extrusion, cooling, and cutting.

Why use a conical twin screw extruder for PVC pipes?

Conical twin screw extruders provide better mixing, stable output, and efficient plasticizing for PVC materials.

What industries use PVC pipes?

Construction, agriculture, electrical protection, water supply, and drainage industries widely use PVC pipes.

How long does a PVC pipe production line last?

With proper maintenance, a high-quality PVC pipe extrusion line can operate for more than 10 years.

Can one extrusion line produce different pipe sizes?

Yes. By changing molds and adjusting downstream equipment, manufacturers can produce different diameters.

Call To Action

Looking for a reliable PVC pipe extrusion line manufacturer for your next project?

Zhangjiagang Chenxing Machinery provides complete PVC pipe production solutions, including:

· Conical twin screw extruders

· UPVC/CPVC pipe extrusion lines

· Multi-cavity PVC conduit pipe systems

· PPR high-speed pipe production lines

· Automatic mixing and feeding systems

· Turnkey factory planning and technical support

Our engineering team can help you choose the right extrusion configuration according to your pipe diameter, output requirements, and factory conditions.
