In modern plastic recycling systems, drying technology plays a critical role in determining the final quality of recycled plastic flakes and pellets. After washing processes such as friction washing, hot washing, and sink-float separation, plastic materials usually contain a large amount of residual moisture.
If moisture is not efficiently removed, it can negatively affect:
Pelletizing performance
Extrusion stability
Final product quality
Energy consumption
Storage efficiency
To solve this problem, recycling plants widely use two important dewatering machines:
Vertical Centrifugal Dryer
Horizontal Centrifugal Dryer
Although both machines use centrifugal force for dewatering, they have different structures, applications, and operational advantages.
At Chenxing Machinery, we manufacture industrial drying systems for PET bottle recycling lines, PP/PE film washing lines, and plastic pelletizing systems worldwide. This article explains the working principles, differences, and industrial applications of vertical and horizontal centrifugal dryers.

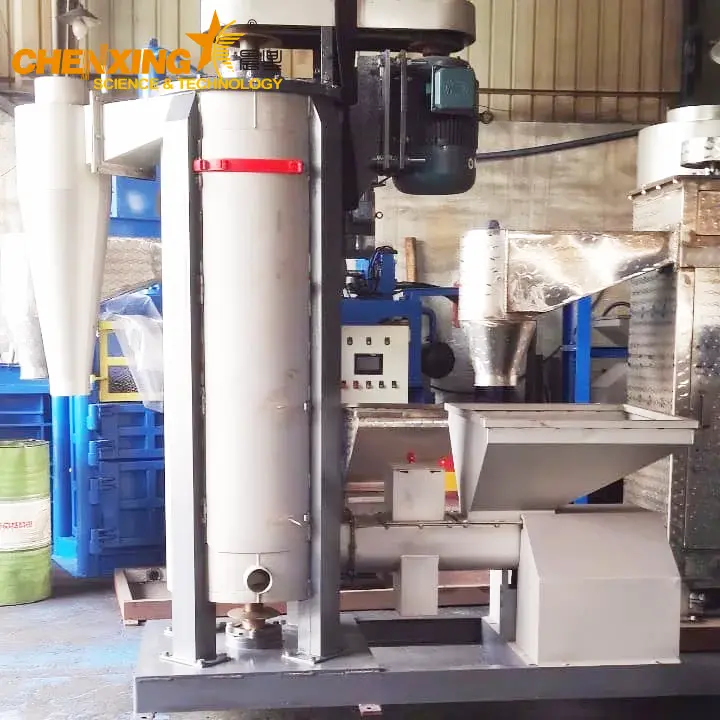

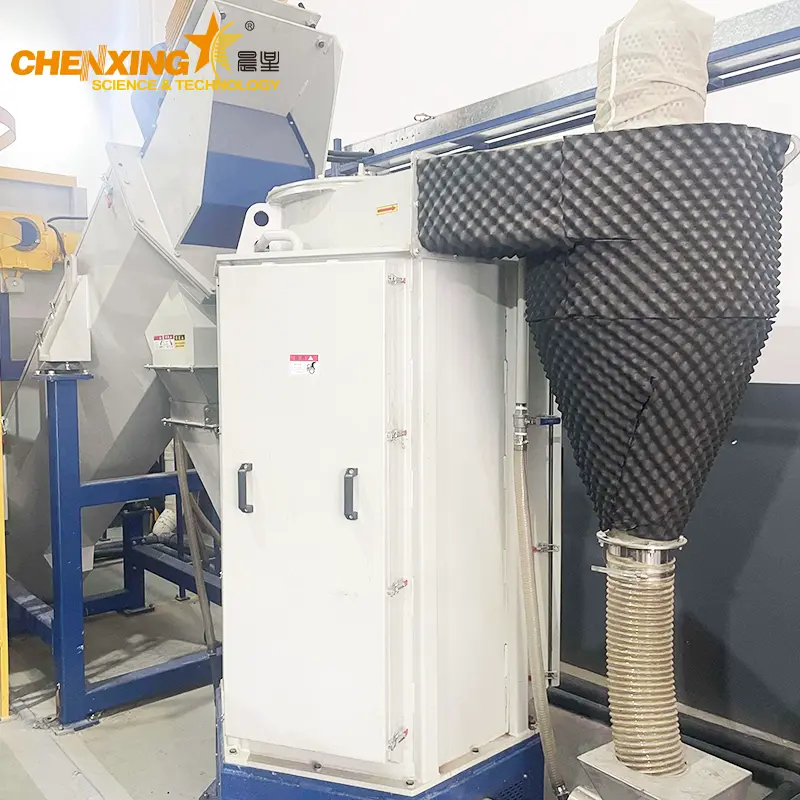

A Vertical Centrifugal Dryer is a high-speed dewatering machine that removes water from rigid plastic flakes through centrifugal force generated by a vertically rotating shaft.
It is commonly used in:
PET bottle recycling lines
Hard plastic washing systems
Plastic flake drying applications
The machine is especially suitable for:
PET flakes
PP rigid flakes
HDPE flakes
Crushed hard plastics
Wet plastic flakes enter the machine from the bottom feeding inlet.
Inside the dryer:
A high-speed vertical rotor spins rapidly.
Centrifugal force throws water outward.
Water exits through perforated screen holes.
Plastic flakes move upward and discharge through the outlet.
The vertical structure allows gravity and centrifugal force to work together for efficient water removal.
Highly effective for rigid plastic materials such as PET and HDPE flakes.
Requires less floor space compared to some horizontal systems.
Efficiently removes large amounts of surface moisture.
Suitable for industrial recycling plants with high production capacity.

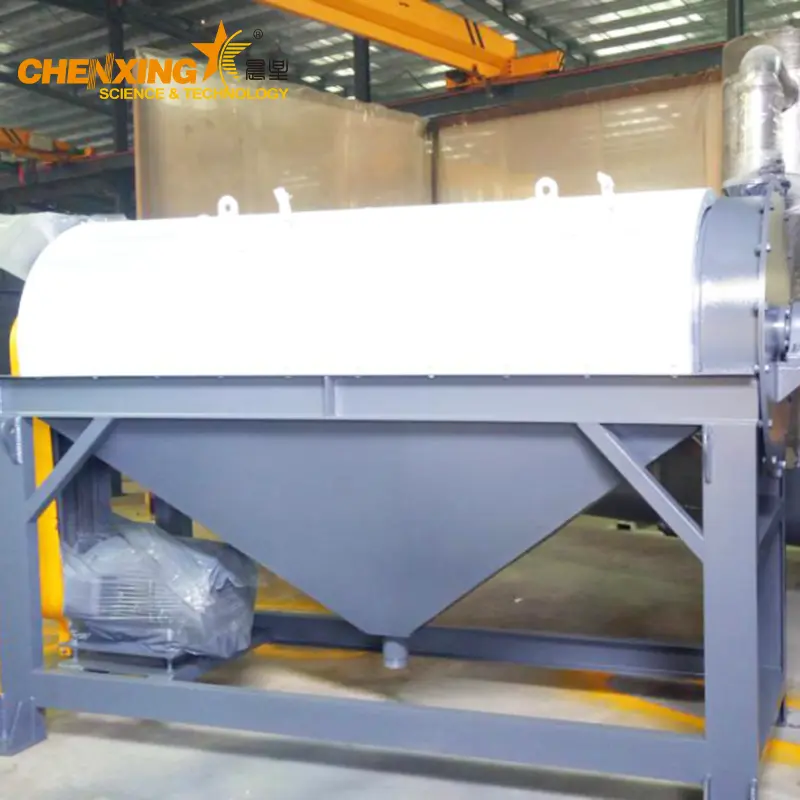

A Horizontal Centrifugal Dryer, also known as a spin dryer, is a dewatering machine designed primarily for plastic films and soft plastics.
It is widely used in:
PP/PE film recycling lines
Agricultural film washing lines
Flexible plastic recycling systems

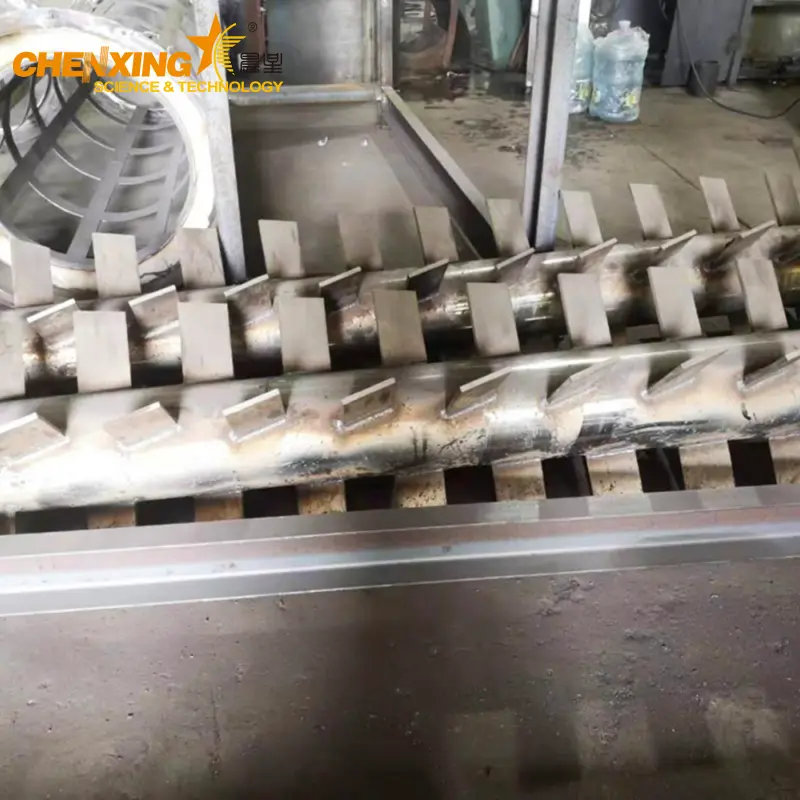

The machine removes water using a high-speed horizontal rotor equipped with slanted paddles.
Wet materials enter from one side of the machine.
Inside the system:
The horizontal rotor spins at high speed.
Slanted paddles push materials forward.
Centrifugal force separates water from plastics.
Water exits through perforated screens.
Airflow transports semi-dried materials to the next stage.
This design allows continuous material movement while removing moisture efficiently.
Perfect for lightweight and flexible materials such as PP and PE films.
Simultaneously transports and dewaters materials.
Can reduce moisture levels below 12%.
Detachable screens and accessible rotor systems simplify cleaning and servicing.
Although their structures differ, both machines share several important functions:
| Function | Vertical Dryer | Horizontal Dryer |
|---|---|---|
| Centrifugal Dewatering | Yes | Yes |
| Continuous Operation | Yes | Yes |
| Moisture Reduction | Yes | Yes |
| Recycling Line Integration | Yes | Yes |
| Industrial Automation | Yes | Yes |
Both machines are essential components in modern plastic recycling systems because they:
Improve pelletizing efficiency
Reduce energy consumption
Enhance recycled material quality
Increase line productivity
Best for:
PET flakes
HDPE flakes
Hard plastics
Best for:
PP/PE films
Soft plastics
Flexible materials
Uses a vertical rotor structure.
Uses a horizontal rotor with conveying paddles.
Mainly focuses on dewatering.
Combines dewatering and material conveying functions.
Typically installed in:
PET bottle washing lines
Hard plastic recycling systems
Commonly used in:
Film washing lines
Soft plastic recycling plants
Strong performance for rigid flake dewatering.
Excellent for lightweight film materials with residual detergent and water.
The correct machine depends mainly on the material being processed.
PET bottle flakes
Hard plastic flakes
HDPE crushed materials
PP/PE films
Agricultural films
Flexible packaging plastics
In many advanced recycling systems, centrifugal dryers are combined with:
Thermal dryers
Squeeze dryers
Hot air drying systems
to achieve even lower final moisture content before pelletizing.
Proper dewatering directly affects:
Recycled pellet quality
Extrusion stability
Energy efficiency
Material purity
Final product consistency
As global recycling standards continue to rise, efficient drying systems are becoming increasingly important for modern recycling plants.
At Chenxing Machinery, we provide professional plastic recycling equipment solutions including:
Vertical centrifugal dryers
Horizontal centrifugal dryers
Friction washers
Sink-float tanks
Plastic pelletizing systems
Complete washing lines
With over 20 years of manufacturing experience, we help recycling companies worldwide improve production efficiency and recycled material quality.
A centrifugal dryer removes excess water from washed plastic materials before pelletizing or final drying.
Vertical centrifugal dryers are generally more suitable for rigid PET flakes.
Horizontal centrifugal dryers are ideal for flexible film materials.
They significantly reduce moisture, but thermal dryers or squeeze dryers may still be required for ultra-low moisture applications.
Yes. Efficient dewatering is critical for stable extrusion, pelletizing quality, and energy savings.
Yes. We provide customized drying solutions according to material type, capacity, and factory layout.
Both vertical centrifugal dryers and horizontal centrifugal dryers are essential dewatering machines in modern plastic recycling systems.
While they share the same centrifugal drying principle, they are designed for different materials and production requirements.
Choosing the correct drying system can:
Improve recycling efficiency
Reduce production costs
Increase pellet quality
Enhance automation performance
For professional recycling plants, selecting the right drying equipment is a key step toward stable and profitable production.
