In the plastic processing industry, the quality of your final product is dictated by the very first step: mixing. Whether you are preparing complex PVC formulations for durable pipe extrusion lines or blending resins with liquid additives, a standard mixer often falls short.
Many plant managers ask us why their blending cycles are taking too long or why they are experiencing inconsistent dispersion. The secret to high-efficiency mixing does not just lie in motor speed—it lies in the geometric design of the agitating blades hidden inside the barrel.
At Zhangjiagang Chenxing Machinery Co., Ltd., we believe that customized agitating blades are the key to a high-performance SUPERMIXER. Today, our engineering team breaks down the science behind upper and lower blade designs and how choosing the right combination can dramatically boost your production efficiency.
An industrial high-speed mixer operates by creating a powerful, three-dimensional vortex. This vortex subjects the polymer resins, fillers, and additives to intense friction and shear forces, raising the temperature for optimal homogeneous compounding.
If the blades are not matched to your material's bulk density, flowability, and viscosity, you will face dead zones, agglomeration (clumping), and excessive energy consumption. To solve this, Chenxing Machinery utilizes a dual-blade system: Upper Blades for shearing and distribution, and Lower Blades for upward thrust.

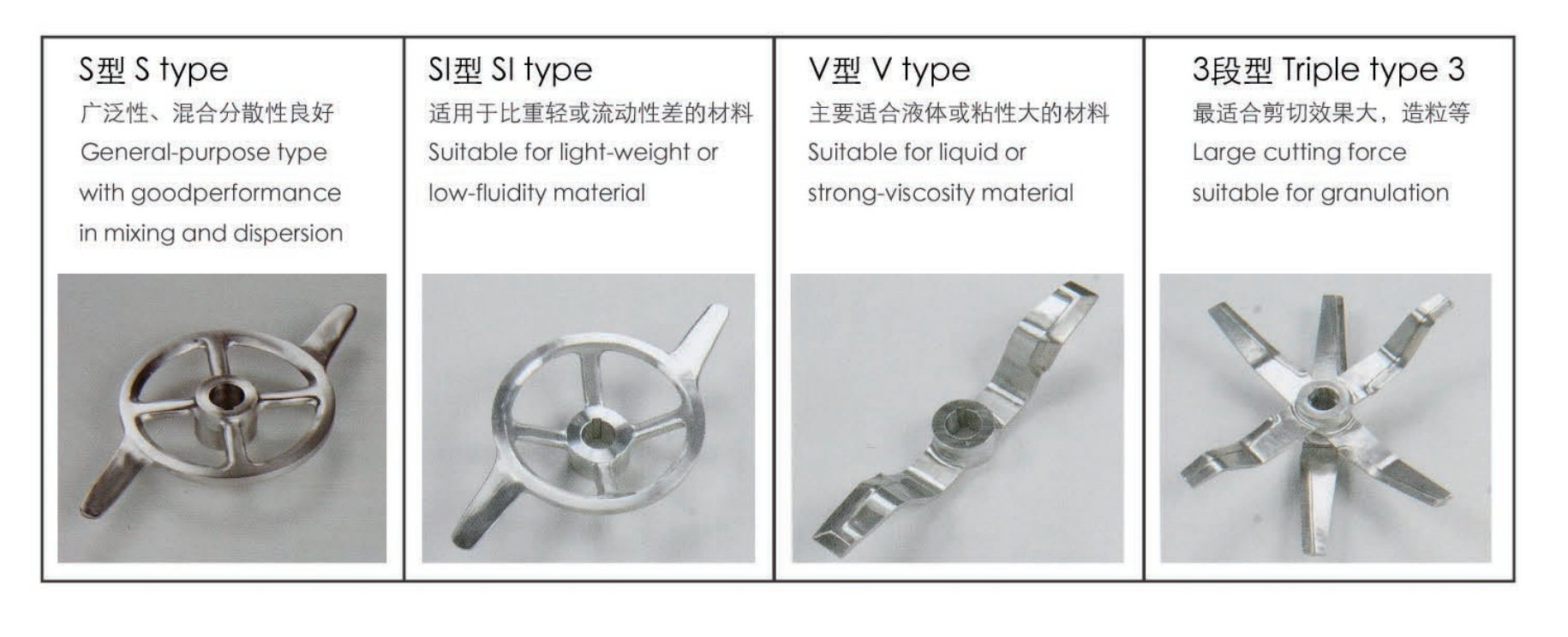

The primary role of the upper blade is to provide various processes to the churned-up material, ensuring no floating particles escape the mixing vortex.
Design: Smooth, aerodynamic sweeping arms.
Application: Offers excellent performance in general mixing and dispersion. It is the go-to standard for dry-blending standard plastic pellets and powders, providing uniform distribution without causing premature material degradation.
Design: Features specialized angles designed to force material downward.
Application: Perfect for light-weight or low-fluidity materials (like wood-plastic composites or heavy calcium carbonate fillers). It actively pulls floating powders back into the main mixing zone.
Design: V-shaped cross-section designed to slice through resistance.
Application: When your formulation requires liquid dosing or involves strong-viscosity materials, standard blades can bog down. The V type cuts through sticky clumps, ensuring liquid additives penetrate the resin pores evenly.
Design: A multi-tiered, fan-like structure generating immense friction.
Application: Ideal for scenarios requiring a large cutting force, such as rapid friction-heating or preliminary granulation.

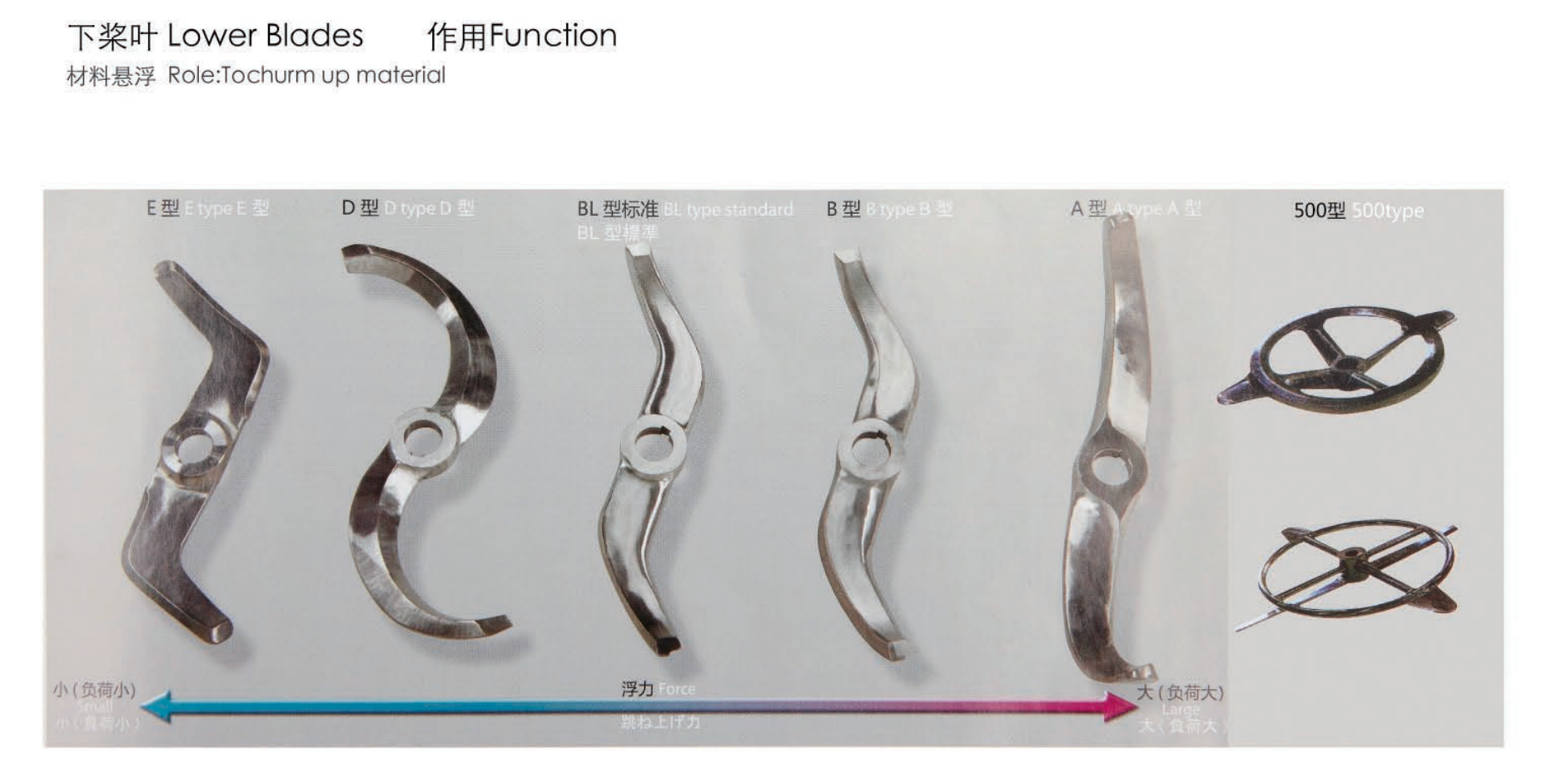

While the upper blades direct the flow, the lower blades are the powerhouse. Their sole function is to churn up material from the bottom of the vessel, fighting gravity to maintain the vortex. The choice of lower blade dictates the Upward Force and motor load.
E & D Types: Feature a narrower profile for small loads. They are highly energy-efficient and suitable for light-weight blending.
BL Type Standard: The industry baseline that offers a perfect balance between lifting force and energy consumption.
A Type: Features the widest surface area and steepest angle. When dealing with heavy, dense batches, the A type generates massive upward force to eliminate bottom dead-zones completely.
Design: A reinforced, ring-bound structure.
Application: Specifically engineered for heavy-duty, large-capacity mixing (e.g., 500L and above). The reinforced ring prevents blade deformation under extreme centrifugal forces, ensuring long-lasting stability.
Why do top manufacturers trust Zhangjiagang Chenxing Machinery Co., Ltd. for their mixing solutions? Because we do not believe in one-size-fits-all.
Strict Dynamic Balancing: Every blade we manufacture undergoes rigorous high-precision dynamic balancing tests. This guarantees zero vibration even at high RPMs, protecting your main shaft bearings and extending machine life.
Premium Stainless Steel: Our blades are cast from high-grade stainless steel and polished to a mirror finish, preventing material adhesion and cutting your cleaning downtime to minutes.
Application-Specific Customization: Whether you are running high-output pipe extrusion lines or precision compounding, our engineers calculate the exact blade pitch and clearance required for your specific recipe.
Q1: How do I know if I need to replace my mixer blades?
A: If you notice an unexplained increase in your mixing cycle time, inconsistent batch temperatures, un-dispersed color masterbatch, or an unusual spike in motor amperage, it is likely time to inspect your blades for wear or consider an upgraded blade profile.
Q2: Can I process liquids in a standard high-speed mixer?
A: Yes, but using standard blades will lead to agglomeration. We highly recommend equipping your mixer with the V Type Upper Blade alongside an automated liquid dosing system for optimal dispersion of plasticizers or lubricants.
Q3: How long do Chenxing SUPERMIXER blades typically last?
A: Lifespan depends heavily on the abrasiveness of your formulation (e.g., high glass fiber or calcium content). However, due to our specialized wear-resistant treatments and high-grade stainless steel, our blades consistently outlast standard market alternatives. We also offer tungsten carbide coatings for extreme wear resistance.
