Plastic pipe manufacturing plays a vital role in infrastructure, construction, and utility projects worldwide. Among the most common materials used for pipe production are PP (polypropylene) and PE (polyethylene). These materials serve different purposes: PP is widely used for power cable protection, while PE is the go-to choice for drainage systems and water supply lines.
With growing market demands and rising equipment costs, many manufacturers ask the same question:
Can PP power pipes and PE drainage pipes be produced on the same extrusion line?
The answer is not a simple yes or no. It depends on several technical factors, including material properties, extrusion screw design, mold structure, cooling requirements, and production efficiency goals.
In this comprehensive guide, we will explore:
The material differences between PP and PE and why they matter.
How extrusion line components influence compatibility for both materials.
The advantages and disadvantages of using one line for both PP and PE.
Expert recommendations and practical tips for manufacturers.
Frequently asked questions backed by real-world experience.
Polypropylene (PP) is a semi-crystalline thermoplastic polymer known for its excellent electrical insulation, rigidity, and high heat resistance. These properties make it the preferred material for electrical conduit pipes and power cable protection systems.
Key Characteristics:
Melting Point: 160-170°C
Density: ~0.90 g/cm³
Strength: High rigidity, less flexibility than PE
Applications: Power cable conduits, industrial protective piping
Polyethylene (PE), on the other hand, is highly valued for its flexibility, chemical resistance, and impact strength. It is the primary choice for drainage systems, water supply lines, and wastewater pipes.
Key Characteristics:
Melting Point: ~130°C
Density: 0.93-0.96 g/cm³
Strength: Excellent flexibility and impact resistance
Applications: Water drainage, irrigation pipes, municipal sewage systems
➡ These differences in melting point, viscosity, and rigidity directly affect the extrusion process.
The short answer: Yes, but with important conditions and considerations.
Producing PP and PE pipes on the same extrusion line requires:
A universal screw design that can process both materials efficiently.
Interchangeable mold components, such as die heads and sizing sleeves.
Accurate temperature control for different heating zones.
Customized process settings for haul-off speed, cooling water temperature, and vacuum pressure.
The screw is the heart of any extrusion machine. For PP and PE, the compression ratio and shear characteristics are different:
PP requires higher shear and temperature resistance.
PE benefits from lower compression to maintain melt stability.
A universal screw with an optimized compression ratio can process both materials but may not deliver the same efficiency as a dedicated screw.
PP and PE have different thermal properties, which means the extrusion line must allow flexible temperature adjustments:
PP Pipe Production: Barrel heating zones typically range from 170°C to 210°C.
PE Pipe Production: Barrel heating zones usually range from 150°C to 190°C.
The cooling stage also differs:
PP pipes require slightly faster cooling to maintain rigidity.
PE pipes need gradual cooling to prevent deformation and maintain flexibility.
Mold components such as the die head and sizing sleeves must be adjusted or replaced to accommodate different material flow behaviors.
PP molds are designed for a higher viscosity melt.
PE molds have slightly different clearance and flow channels to ensure smooth extrusion.
Quick-change mold systems can significantly reduce downtime during material changeovers.
✔ Cost Savings: Lower capital investment compared to buying two separate lines.
✔ Space Optimization: Ideal for manufacturers with limited factory space.
✔ Flexibility: Good option for small batch production or customized orders.
✘ Lower Throughput: Universal screw designs compromise efficiency.
✘ Frequent Downtime: Each material change requires cleaning, temperature adjustments, and mold replacement.
✘ Quality Risks: Variations in melt flow and temperature control can lead to dimensional inconsistencies.
Clean the Hopper and Feeding System to prevent contamination.
Purge the Screw and Barrel with a neutral cleaning compound or the next material.
Replace the Die Head and Sizing Components if necessary.
Adjust Heating Zones to match the new material requirements.
Reset Haul-Off and Cooling Parameters for optimal pipe quality.
This process can take 1–2 hours, depending on the design of your extrusion line.
If your business focuses on high-volume, single-material production, dedicated lines are the best choice for maximum efficiency and product quality.
However, if you:
✔ Handle small or medium batch orders,
✔ Need material flexibility for different projects, and
✔ Have limited investment budget,
… then a universal extrusion line with quick-change capabilities can be a smart investment.

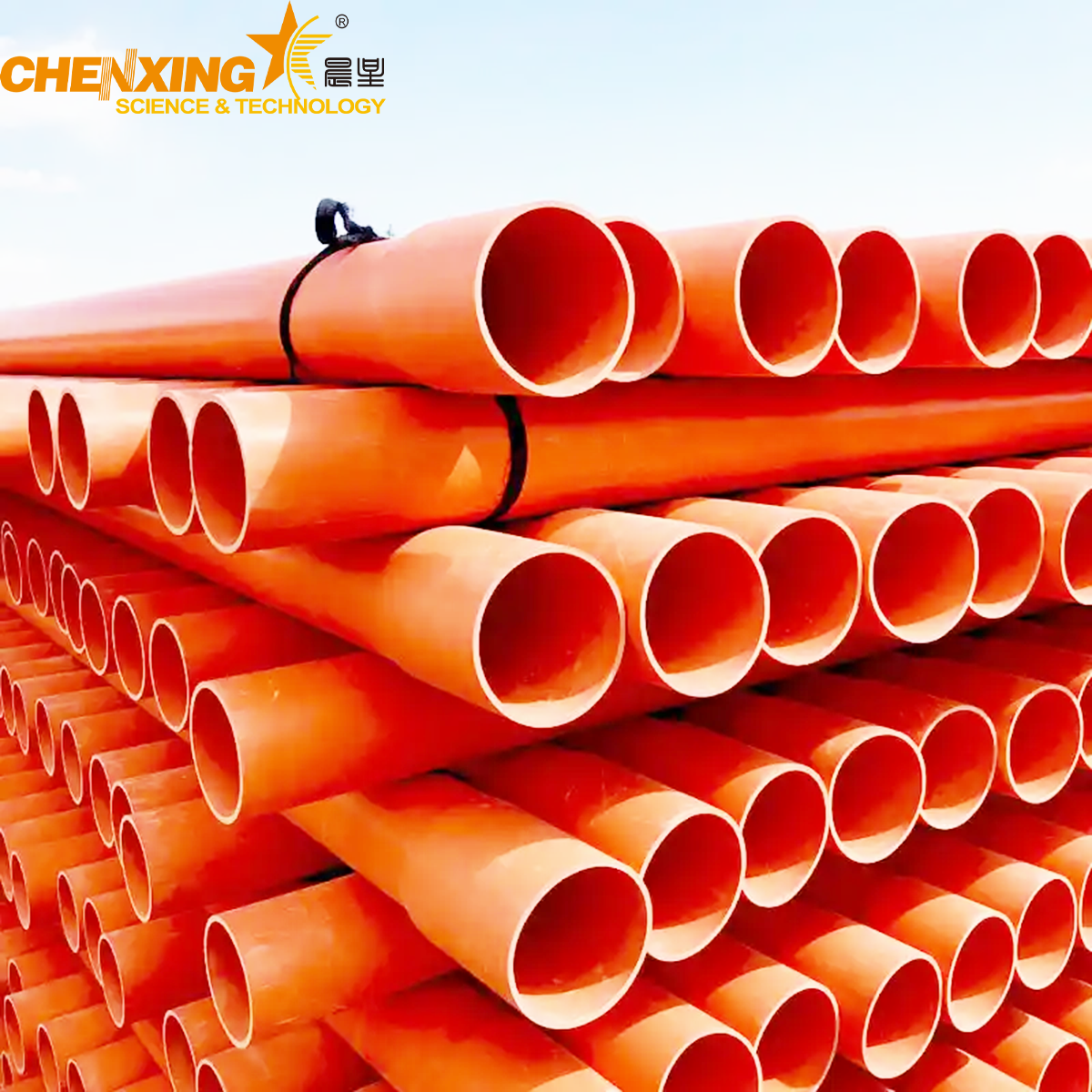

PP Power Pipes: Electrical conduit systems in industrial parks, telecom cable protection.
PE Drainage Pipes: Urban drainage, rural irrigation, residential sewage systems.
The market is moving toward multi-material compatibility and smart extrusion systems.
IoT-enabled monitoring for real-time temperature and pressure control.
Energy-efficient extruders for lower operating costs.
Modular line designs for quick changeovers between materials.
Looking for a high-performance, customizable extrusion line for PP, PE, and other plastic pipes?
Contact Zhangjiagang Chenxing Machinery Co., Ltd. today!
WhatsApp/WeChat: +86 15951187228
Email: ceo@cxsljx.com
Website: www.chenxingmachinery.com
1. Can PP and PE pipes use the same extrusion screw?
Yes, if the screw design is universal with an optimized compression ratio. However, a dedicated screw ensures better melt quality and higher output.
2. How long does it take to switch from PP to PE?
Typically 1–2 hours, including cleaning, mold replacement, and temperature adjustments.
3. Can I produce PVC pipes on the same line?
No, PVC requires a different extrusion system with a twin-screw extruder due to its unique processing characteristics.
4. What is the ideal extruder size for multi-material production?
A 65-90mm single-screw extruder with a universal screw is commonly used for both PP and PE pipes.
5. What are the biggest risks of using one line for both materials?
Dimensional instability, material contamination, and inconsistent mechanical properties if process control is poor.
6. Do I need to change the mold every time?
Yes, at least the die head and sizing sleeves should be changed for best results.
7. Is it possible to automate the changeover process?
Yes, modern extrusion lines offer quick-change systems and automated cleaning functions to reduce downtime.
