In the world of plastic pipe manufacturing, selecting the appropriate extrusion system is far more than a matter of equipment brand or advertised output. The choice of extruder must align closely with the specific polymer characteristics you're working with. Different materials behave differently under heat and pressure—a factor that, if overlooked, can significantly impact both product quality and production efficiency.
Whether your operation uses polyethylene (PE), polypropylene (PP), polyvinyl chloride (PVC), polypropylene random copolymer (PPR), or acrylonitrile butadiene styrene (ABS), your extrusion process needs to reflect the material's unique thermal profile, viscosity, and structural demands.
Each type of plastic reacts differently to heat and shear. Some melt quickly and flow easily; others are prone to degradation or require intensive mixing. If your extruder configuration fails to accommodate these behaviors, you could face issues such as:
Inconsistent wall thickness
Surface imperfections
Uneven flow or pressure drops
Lower mechanical strength in the final pipe
This is why selecting the correct screw design, barrel length, die configuration, and motor torque isn’t optional—it's foundational.
Recommended: Single-Screw Extruder

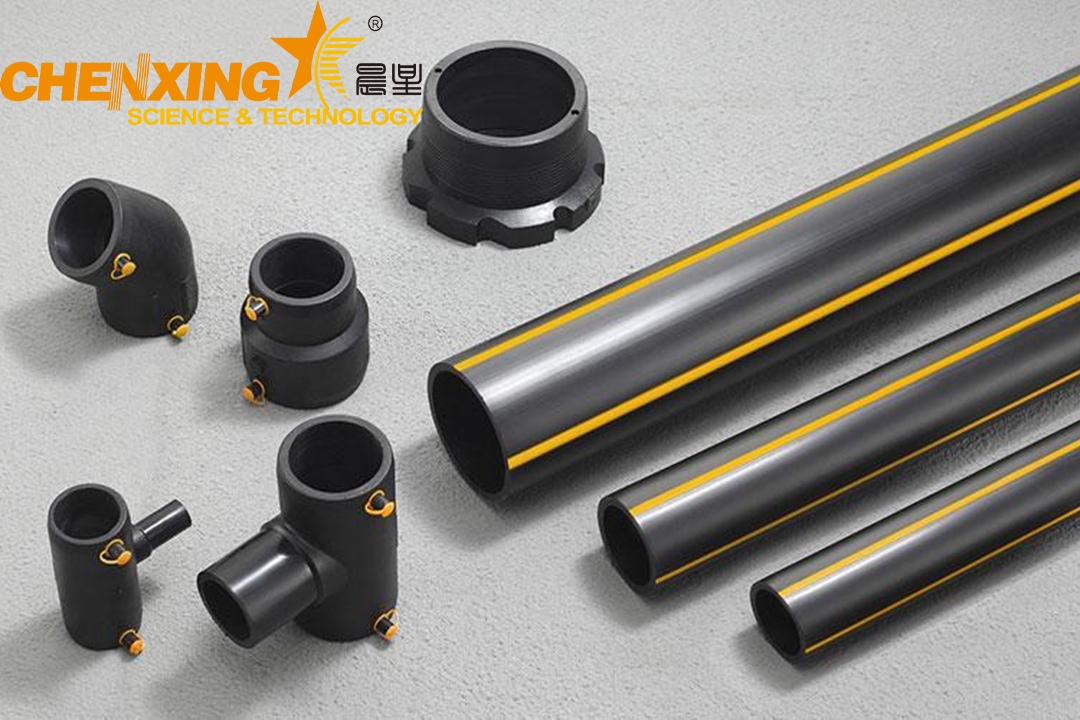

Polyethylene—including HDPE and LDPE—is widely used for water supply, sewage, and gas distribution. It processes smoothly and consistently, especially on high-throughput single-screw extruders.
Requires precise temperature zoning
Spiral die design ensures uniform melt distribution
Ideal for large-diameter or thick-walled pipes
Recommended: Single-Screw Extruder with Barrier Screw

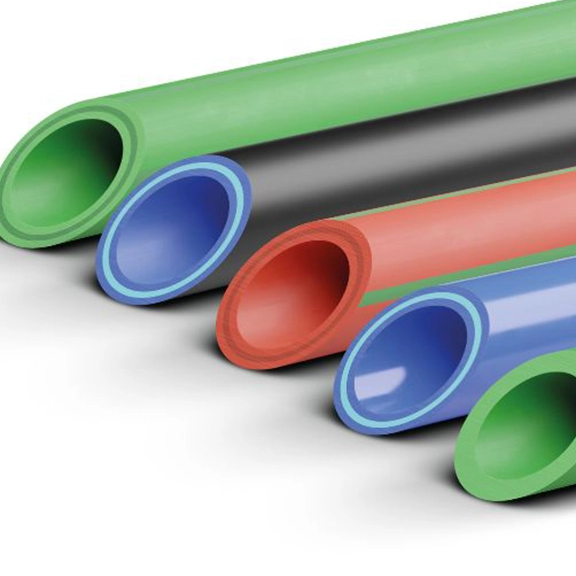

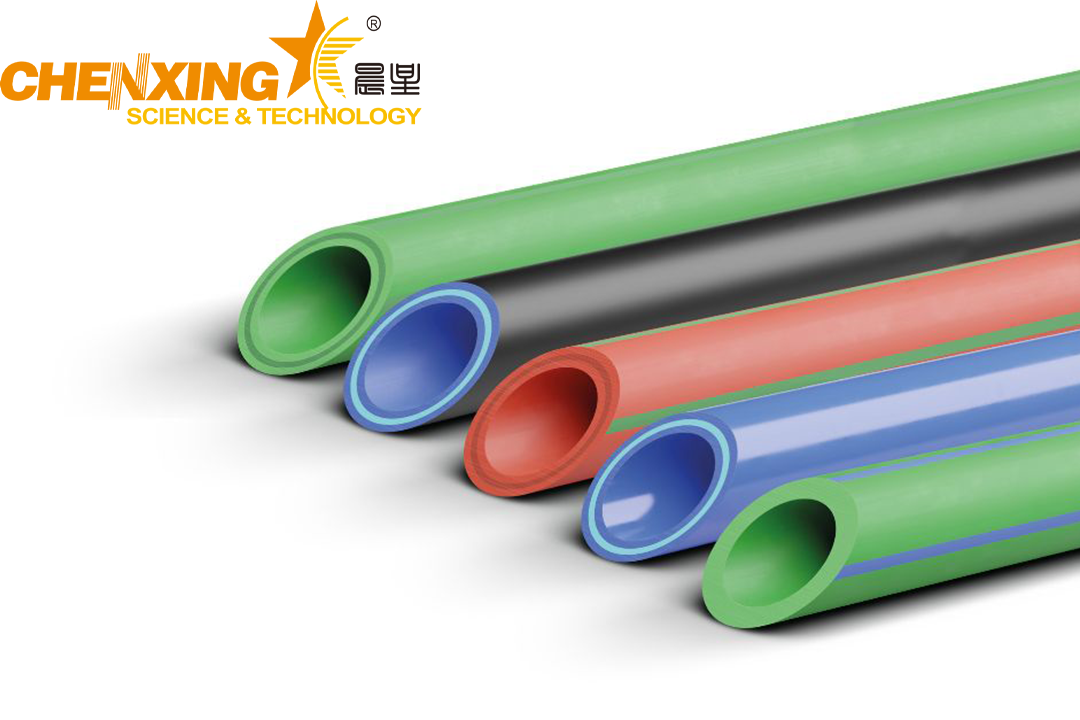

PP is commonly selected for hot and cold water pipes. While it melts cleanly, its sensitivity to shear and higher melt temperatures demand a more advanced screw design.
Barrier screw helps with melt homogenization
Venting is crucial to release volatiles
Rapid cooling tanks required to maintain shape
Recommended: Conical Twin-Screw Extruder

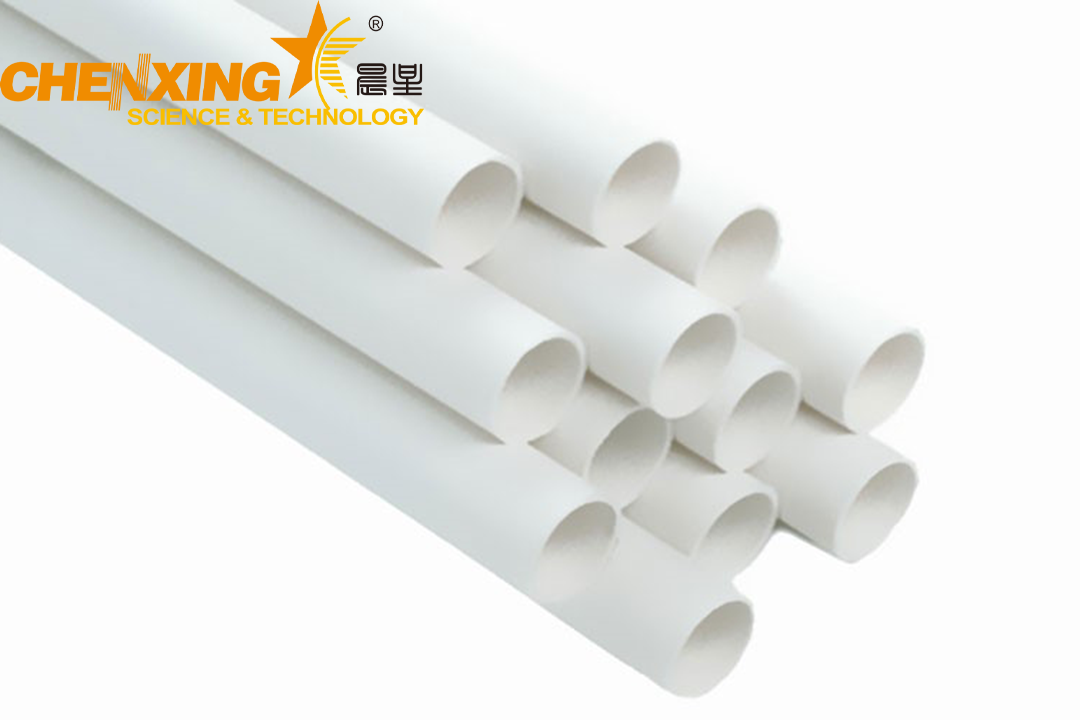

PVC is thermally sensitive, and any excessive heat or mechanical stress can lead to degradation. That's why twin-screw extruders are the go-to system.
Short L/D ratios prevent thermal buildup
Strong mixing action for rigid or foamed pipes
Appropriate for electrical conduit, drainage, and sewer lines
Recommended: High-Efficiency Single-Screw Extruder

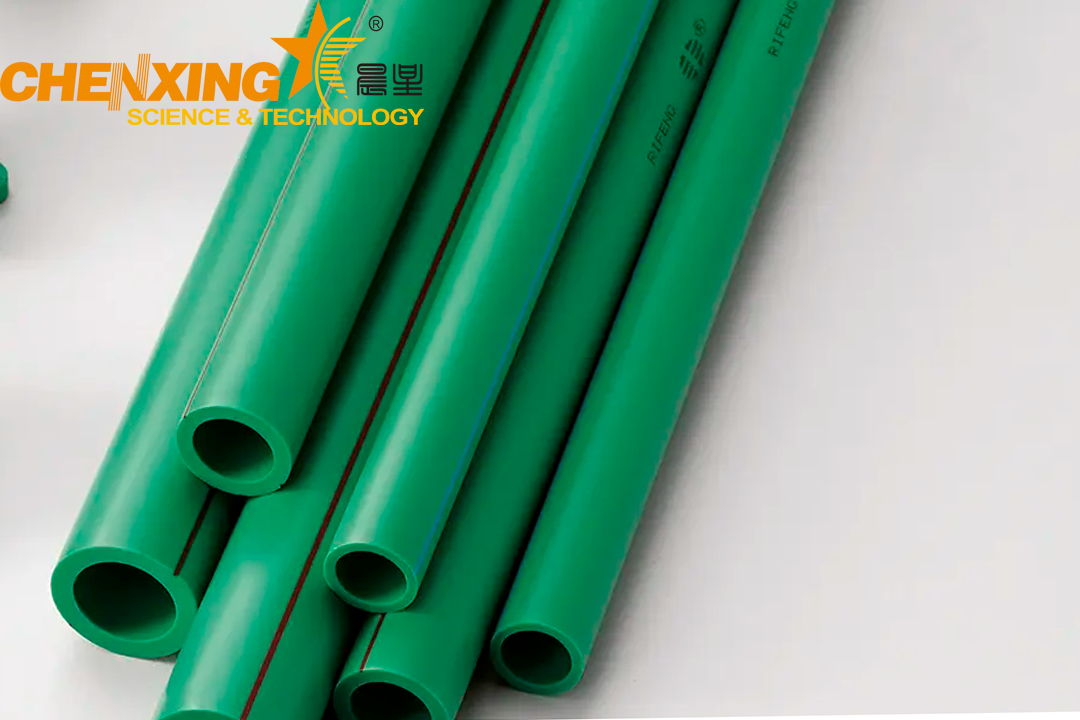

PPR is used primarily in hot and cold water distribution systems. It demands stable melt temperature and even extrusion to ensure long-term pressure resistance.
Consistent heating zones required
Special dies help control ovality in thicker walls
Compatible with inline printing and laser marking systems
Recommended: Twin-Screw or Modified Single-Screw Extruder
ABS is notable for impact resistance, but it tends to degrade under excessive heat. Choosing the right extruder reduces the risk of discoloration or structural failure.
Needs vacuum venting and temperature control
Performs well in high-flow, multi-layer applications
Suitable for telecom conduit and industrial piping
Larger diameter pipes require higher melt throughput and stronger die head backpressure. Your extruder should be sized accordingly.
High-volume operations may justify twin-screw extruders or co-extrusion systems, especially when using fillers or recycled resins.
For materials with high filler content, a custom screw geometry ensures proper mixing and avoids abrasive wear.
If you're producing multi-layer or foam-core pipes, pairing multiple extruders in a co-extrusion setup is essential.
❌ Selecting a generic extruder for sensitive materials like PVC
❌ Overestimating throughput requirements, leading to energy waste
❌ Ignoring how screw design impacts filler dispersion
❌ Choosing die heads not matched to your material's viscosity
Avoiding these common pitfalls will save time, reduce scrap, and improve product consistency.
At Chenxing Machinery, our process begins with your material. We ask about:
Raw material type and purity
Intended pipe diameter and application
Daily production volume
Required certifications or regional standards
Then, we engineer the correct solution with:
Custom screw/barrel combinations
Multi-zone temperature control
Sizing sleeves and calibration tanks
Integrated haul-off and cutting units
We also offer recycling + extrusion systems, allowing you to reprocess your own scrap into usable pipe material.
Extruder selection isn’t about finding the most powerful or expensive machine. It’s about finding the right machine for your plastic. Understanding the relationship between pipe material and extrusion mechanics leads to better performance, fewer rejections, and a smoother production flow.
