With building materials evolving rapidly, PVC wall panels have emerged as a go-to solution for interior finishing across residential, commercial, and industrial spaces. Their water resistance, low maintenance, and decorative versatility make them suitable for bathrooms, kitchens, and public environments. As demand grows, so does the interest in how these panels are manufactured.
The core of this production process is the PVC wall panel extrusion line. This article explains what it is, how it works, and why it has become such a valuable asset for manufacturers targeting the construction sector.

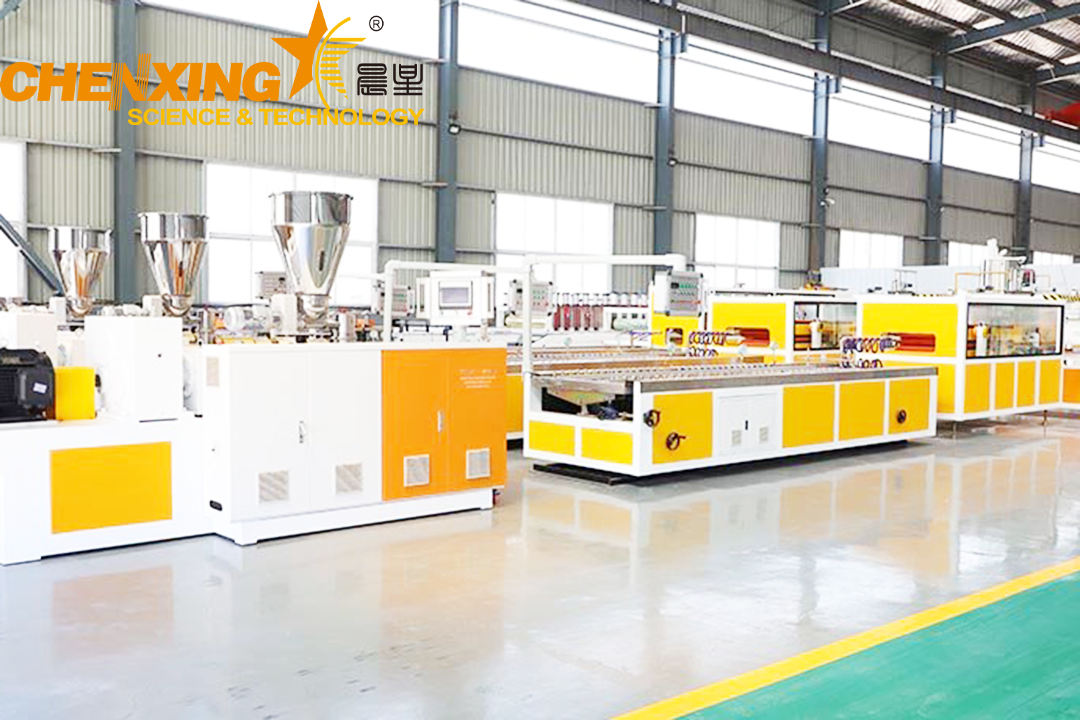

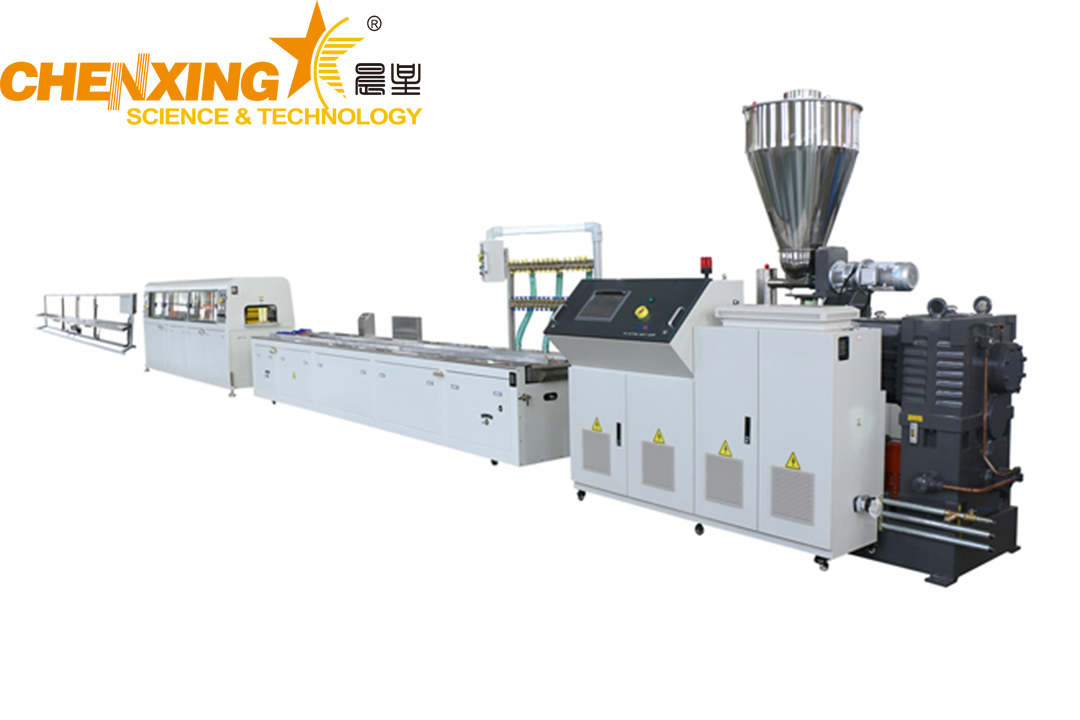

A PVC wall panel extrusion line is an integrated production system that converts PVC powder or pellets into finished wall and ceiling panels through continuous extrusion. The line includes several key components:
Conical twin-screw extruder
Extrusion die for shaping
Vacuum calibration table
Cooling unit
Haul-off machine
Cutter
Optional lamination or embossing units
These components work in sync to form lightweight, hollow-core or solid panels that can be used in ceilings, interior walls, and commercial spaces.
The process begins with feeding a PVC formulation (resin + additives) into the twin-screw extruder. Here, it is heated and mixed under pressure to produce a homogenous melt.
The molten PVC exits the barrel and enters a die specifically designed to form the required panel cross-section. This die determines the profile, including width, thickness, and internal structure.
After the panel exits the die, it passes through a vacuum calibration unit that sets its final dimensions while being rapidly cooled with water. Proper cooling ensures dimensional stability and surface finish.
The shaped panel is pulled through the line at a consistent speed using a traction (haul-off) system. Once the desired length is reached, the cutter trims it accordingly.
For added decorative effect, panels may be laminated with printed film, hot-stamped, or embossed.
Production Efficiency: Continuous operation yields high output and consistent quality.
Low Material Waste: Unused or defective panels can often be recycled on-site.
Design Flexibility: Easily switch between different patterns, textures, and panel profiles.
Compact Footprint: The line can be configured to fit existing factory layouts.
PVC as a base material offers added benefits:
Flame retardancy
Waterproof surface
Resistance to mold and chemicals
Lightweight handling during installation

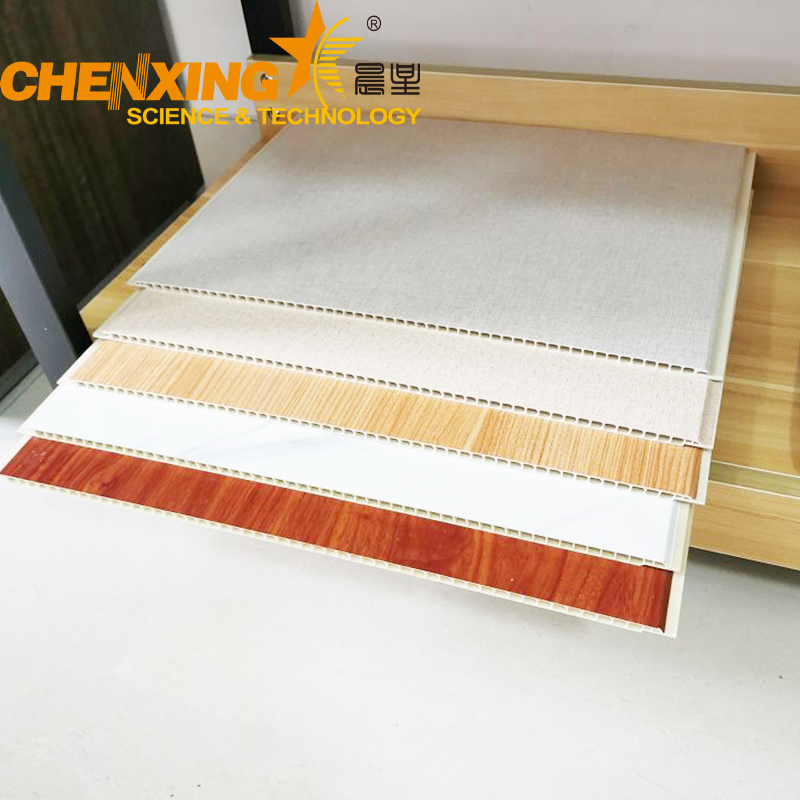

Hollow-core wall panels for general interior use
PVC ceiling boards for moisture-prone spaces
Laminated or printed decorative panels
Flat panels with interlocking profiles
The extrusion line can be customized with specific dies and post-processing equipment to adapt to market demands.
Target Product Range: Dimensions and design of the panels
Surface Finish: Will you need lamination or embossing?
Daily Output Goals: Choose screw size and motor power accordingly
Material Source: Virgin PVC or regrind? Additives or calcium carbonate loading?
Consulting with experienced manufacturers helps ensure proper configuration of the line to meet technical and commercial expectations.
With rising construction activity in developing markets, low-cost yet high-performance materials like PVC wall panels are in growing demand. An extrusion line enables manufacturers to respond quickly to market needs, diversify their offerings, and reduce reliance on external suppliers.
The ability to control quality in-house while producing scalable, customized panel types gives fabricators a strong competitive edge.
If your business is looking to enter or expand into the interior finishing materials sector, a PVC wall panel extrusion line offers a practical and scalable solution. It provides control over product quality, enhances operational efficiency, and allows for flexibility in design and production capacity.
