How To Choose A PVC Pipe Extrusion Line: Single Outlet Vs. Double Outlet Vs. Four Outlet?

When investing in a PVC pipe extrusion line, one of the most critical engineering decisions is selecting the right cavity configuration—commonly referred to as one-out (single), two-out (double), or four-out (multi-cavity) systems.

This choice directly impacts production efficiency, investment cost, product range, and long-term ROI. In this guide, we will break down the technical logic behind each configuration and help you determine the optimal solution for your factory.

What Does “One-Out, Two-Out, or Four-Out” Mean?

In PVC pipe extrusion, the term refers to how many pipes are produced simultaneously from a single extrusion system:

• One-out (Single cavity): One pipe per cycle

• Two-out (Double cavity): Two pipes produced simultaneously

• Four-out (Four cavity): Four pipes produced simultaneously

This is determined by the extrusion die design, calibration system, and downstream equipment synchronization.

Core Factors That Determine Your Choice

Before selecting a configuration, you must evaluate:

1. Pipe Diameter Range

• Large diameter pipes (≥110mm): → Single outlet only

• Medium diameter pipes (50–110mm): → Single or double outlet

• Small diameter pipes (≤50mm): → Double or four outlet

The smaller the pipe diameter, the more cavities you can run efficiently.

2. Production Capacity Requirements

If your goal is high-volume production, multi-cavity systems are significantly more efficient.

3. Investment Budget vs ROI

• Single outlet line

  • Lower initial investment

  • Flexible production

  • Slower ROI

• Double outlet line

  • Balanced cost and output

  • Most popular choice in global markets

• Four outlet line

  • Higher upfront cost

  • Maximum output efficiency

  • Fast ROI for high-demand products

4. Application Scenarios

Different industries demand different configurations:

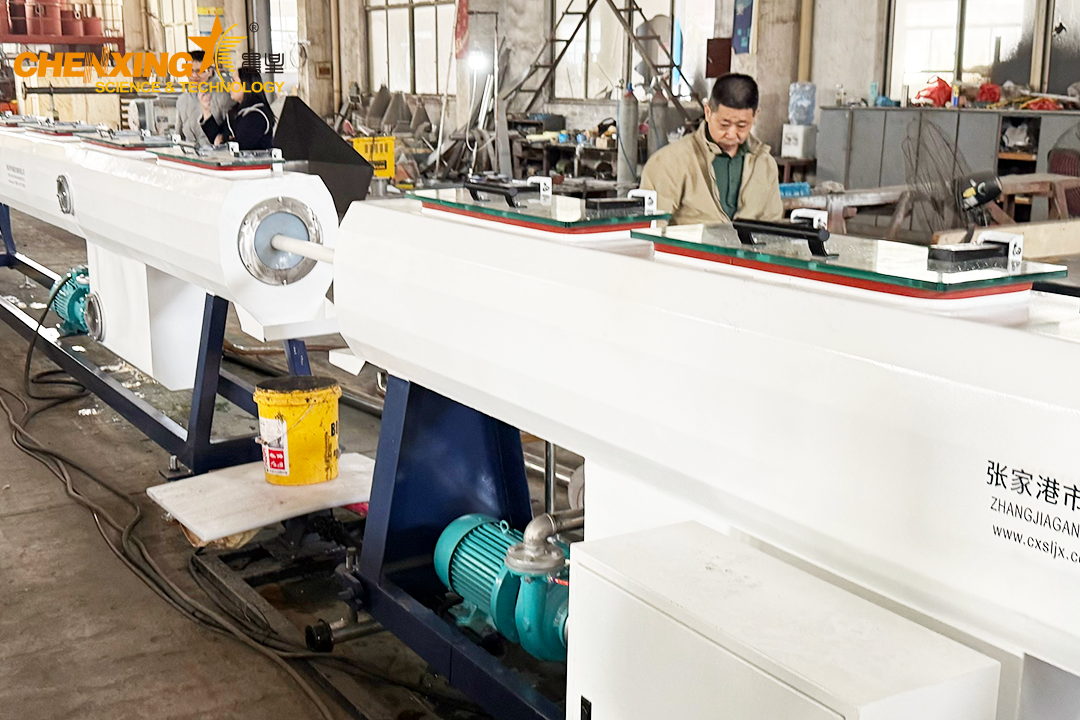

Single Outlet (One-Out)

Best for:

• Large-diameter pipes (water supply, drainage)

• Thick-wall pipes (pressure pipes)

• Custom or engineering projects

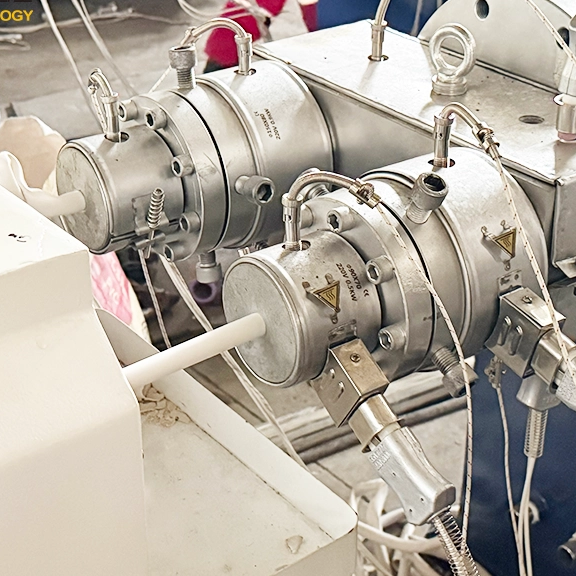

Double Outlet (Two-Out)

Best for:

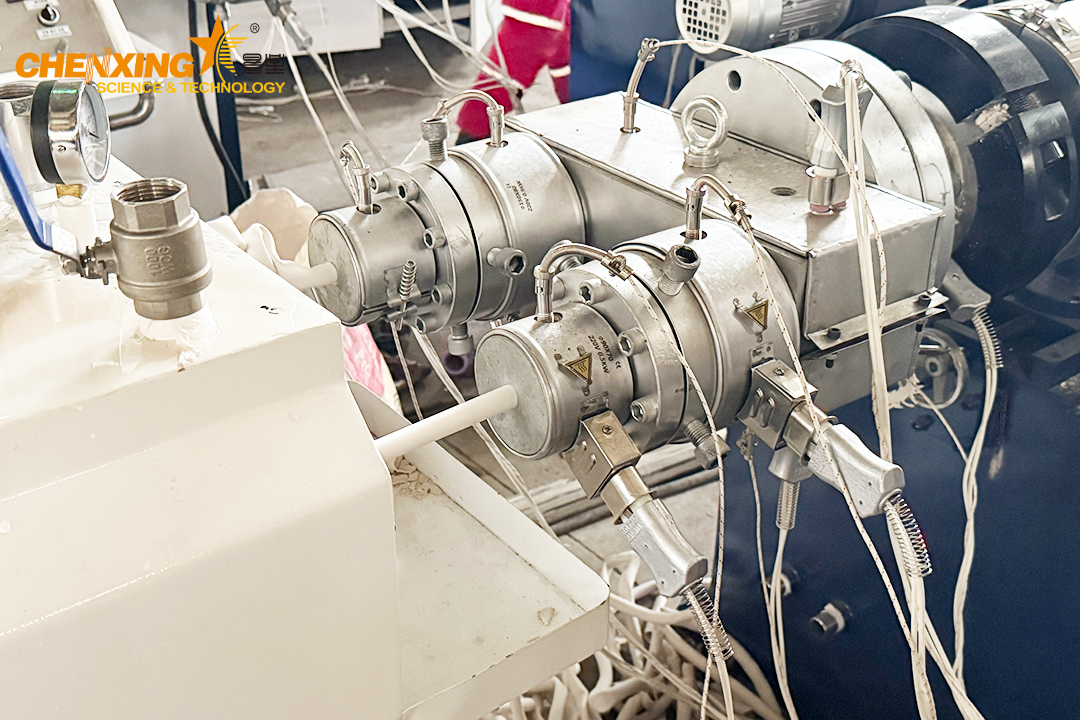

• PVC electrical conduit pipes

• Medium-scale production factories

• Balanced flexibility and efficiency

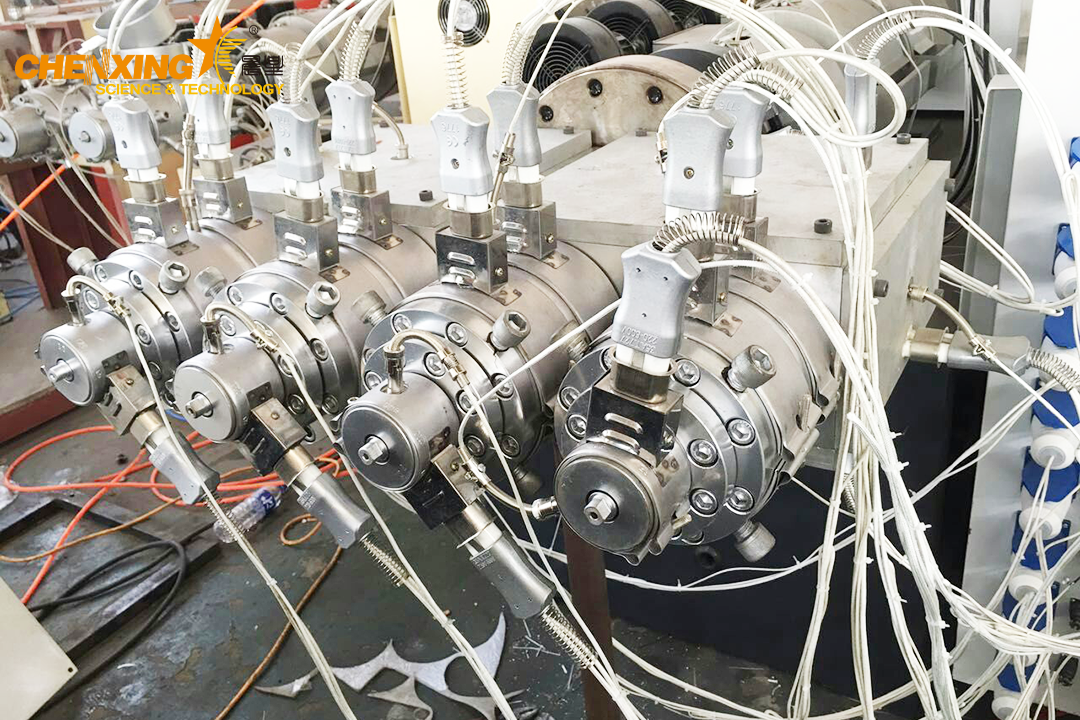

Four Outlet (Four-Out)

Best for:

• Small diameter pipes (16–32mm)

• Cable conduits, irrigation pipes

• High-volume, standardized production

Technical Comparison: Which One Is More Efficient?

Single vs Multi-Cavity Efficiency

• Multi-cavity systems share:

  • One extruder

  • One control system

  • One operator

But produce:

• 2× or 4× output

This dramatically reduces:

• Labor cost per ton

• Energy consumption per unit

• Production cycle time

Engineering Considerations You Should NOT Ignore

Choosing cavity quantity is not just about output. You must also evaluate:

1. Extruder Matching

• Multi-cavity lines require higher plasticizing capacity

• Typically paired with conical twin screw extruders (SJSZ series)

2. Cooling & Calibration System

• More cavities = more complex vacuum calibration tanks

• Requires stable pressure and cooling balance

3. Haul-off & Cutting Synchronization

• Multi-out systems demand precise synchronization

• Any deviation affects all pipes simultaneously

4. Factory Space

• Four-out lines require longer layout and more downstream equipment

Real-World Selection Strategy (Recommended Logic)

Based on real export project experience, here’s a practical decision model:

Step 1: Define your main product

• Large pipes → Single

• Small pipes → go to Step 2

Step 2: Evaluate market demand

• Stable high demand → Four-out

• Medium demand → Double-out

Step 3: Consider budget & expansion

• Limited budget → start with Double

• Long-term scale plan → invest in Four

Why Most Buyers Choose Double-Outlet Lines

From a global market perspective (especially in Southeast Asia, Middle East, and South America):

Double-out PVC pipe extrusion lines are the most widely adopted solution

Because they offer:

• High efficiency without excessive complexity

• Moderate investment cost

• Strong adaptability to different pipe sizes

How We Help You Choose the Right Configuration

At Chenxing Machinery, we don’t just sell machines—we design production solutions based on your business model.

We provide:

• Capacity calculation based on your target market

• Mold and downstream matching optimization

• Energy consumption analysis

• Full turnkey project planning

FAQ – PVC Pipe Extrusion Line Configuration

1. Can one extrusion line switch between single and double outlet?

In most cases, no. The die head, calibration system, and downstream equipment are specifically designed for a fixed number of cavities.

2. Is four-out always better than two-out?

Not necessarily. If your market demand is unstable, a four-out system may lead to overcapacity and higher risk.

3. What is the most cost-effective solution for beginners?

A double-out PVC pipe extrusion line is typically the safest and most cost-efficient starting point.

4. Does multi-cavity affect pipe quality?

If properly designed and calibrated, multi-cavity systems can maintain consistent quality across all pipes.

5. How do I calculate the required output?

It depends on:

• Pipe diameter

• Material (PVC-U, PVC-O, etc.)

• Operating hours

• Market demand

A professional supplier should help you model this.

Conclusion: Choose Based on Strategy, Not Just Output

Selecting between one-out, two-out, or four-out is not just a technical decision—it’s a business strategy decision.

• If you prioritize flexibility → Single outlet

• If you want balance → Double outlet

• If you aim for scale and efficiency → Four outlet

Call to Action

Looking to optimize your PVC pipe production line?

Contact us today for a customized extrusion solution tailored to your capacity, budget, and market needs.
