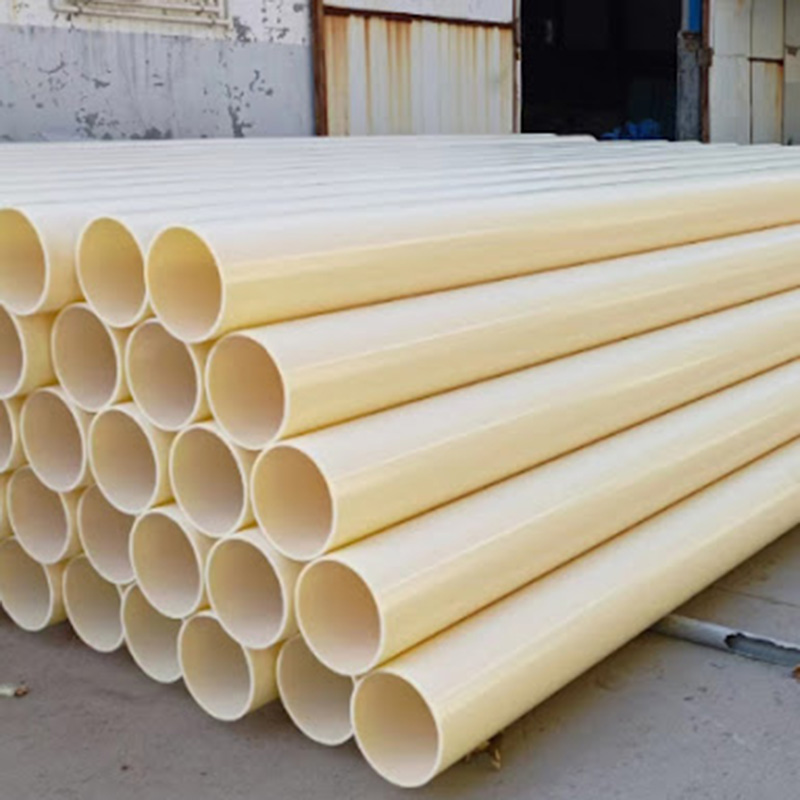

In plumbing, electrical infrastructure, and industrial ventilation systems, ABS pipes have earned their place thanks to their strength, impact resistance, and stability in diverse environments. But these pipes don’t come off the shelf—they're made through a controlled, continuous process known as extrusion.
An ABS pipe extrusion line is the specialized setup behind this process. It involves multiple synchronized machines working together to shape raw ABS material into durable, dimensionally accurate pipes. This article aims to demystify how these lines work, which components they require, and what decision-makers should evaluate when sourcing equipment.
ABS (Acrylonitrile Butadiene Styrene) is a thermoplastic known for its ability to resist corrosion, withstand mechanical stress, and remain lightweight. These qualities make it ideal for:
Residential and commercial drainage systems
Cable protection and electrical conduit installations
Industrial piping for air and ventilation
Compared to PVC or PE, ABS offers superior performance in impact-heavy environments. This versatility continues to drive demand for ABS pipe production systems in construction, utilities, and manufacturing.
The process begins with ABS granules being loaded into a single screw extruder. Here, they're gradually melted by friction and externally controlled heaters. The screw motion pushes the molten polymer forward, ensuring a homogeneous melt.
Key performance factors:
Stable temperature across the extruder zones
Steady throughput with minimal surging
Uniform melt consistency for dimensional control
Once melted, the plastic flows through a specially engineered pipe die. This die shapes the material into a tubular form. The precision of this die has a direct impact on wall thickness and roundness.
The extruded pipe enters a vacuum calibration tank immediately after shaping. Inside, vacuum suction and cold water sprays fix the pipe’s outer diameter and harden the surface.
This step ensures:
Dimensional accuracy
Roundness retention
Smooth surface finish
After sufficient cooling, a haul-off machine grips and pulls the pipe steadily. It works in sync with the extruder’s speed. Finally, a cutter slices the pipe to desired lengths, typically using a planetary or saw-type system.
While configurations may vary, a typical line includes:
Material loader and dryer – Prepares ABS granules by removing moisture
Single screw extruder – Melts and conveys material
Pipe die and calibrator – Shapes and sizes the pipe
Vacuum and water cooling tanks – Stabilize form and temperature
Haul-off machine – Maintains line tension
Cutting system – Provides clean, accurate cuts
Stacking or socketing unit – For end forming and handling
Each piece must operate in sync to maintain stable pipe dimensions and consistent output quality.
Before making an investment, consider the following:
Process control – Ensure temperature, speed, and pressure are adjustable and monitored via a central control panel
Material compatibility – The line must be optimized for ABS’s thermal behavior
Output range – Can it handle your required pipe diameters (e.g. 16mm–630mm)?
Energy efficiency – Are motors and heaters inverter-controlled to reduce electricity consumption?
Ease of operation – Look for intuitive HMI and PLC systems for real-time adjustments
Downstream integration – Ensure components like belling machines or stacking tables can be added easily
Most extrusion lines can be configured to produce a wide range of pipe dimensions, such as:
Outer diameter: Typically from 16 mm up to 630 mm
Wall thickness: In line with Schedule 40/80 or other pressure ratings
Color: Standard is black, but white, grey, or other tints can be achieved with masterbatch
Applications include:
Plumbing waste lines
Underground cable conduits
Chemical ventilation systems
Industrial air ducting
✅ High throughput – Ideal for mass production of long-length pipes
✅ Precise control – Delivers consistent wall thickness and outer diameter
✅ Material efficiency – Reduces scrap with controlled extrusion and calibration
✅ Automation-ready – PLC integration allows for minimal operator intervention
✅ Scalability – Easily expandable with additional cutting or belling units
These advantages make extrusion lines an attractive long-term investment for plastic pipe manufacturers.
ABS shares some characteristics with PVC and PE but requires different processing parameters:
| Feature | ABS | PVC | PE |
|---|---|---|---|
| Melting temperature | Medium-high | Lower | Lower |
| Impact resistance | High | Moderate | High |
| Die design complexity | Moderate | Moderate | Simple |
| Cooling requirements | Moderate | Intensive | Low |
This makes ABS extrusion slightly more demanding in terms of thermal stability and melt flow control but offers superior mechanical performance.
